Education Sharing System
13

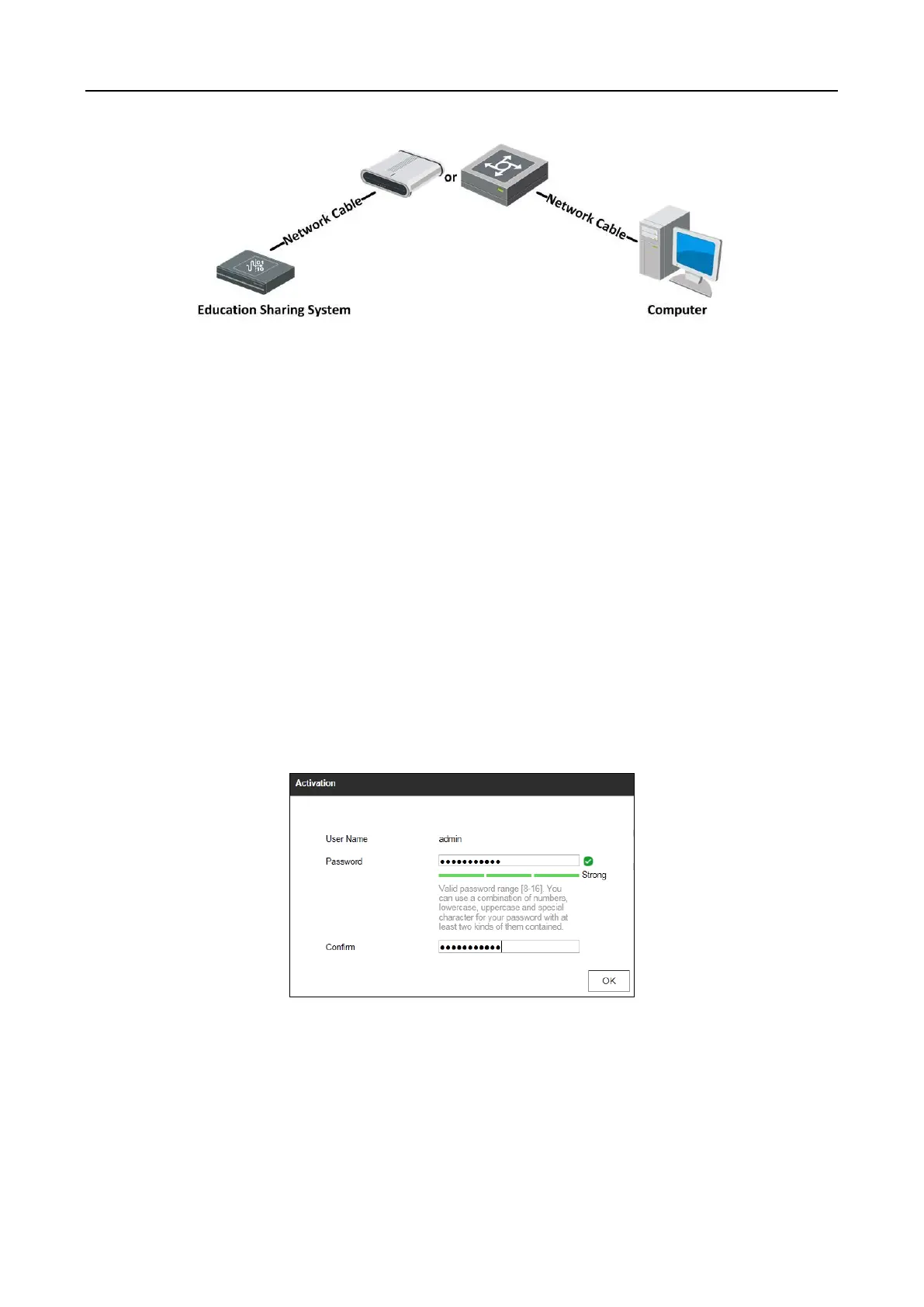

Figure 4-2 Connect via a Switch or a Router
4.2 Access via Web Browser
Purpose:
You can get access to the device via web browser. You may use one of the following listed web
browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet Explorer 8.0, Internet Explorer 9.0,
Internet Explorer 10.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported
resolutions include 1024*768 and above.
Before you start:
Obtain the device IP address via SADP software. Refer to the user manual for the detailed steps of
obtain online device and modify device network parameters via SADP software.
Step 1 Open web browser, enter the IP address of the device and then press Enter.
Step 2 Log in the device.
If the device has not been activated, you need to activate the device first before login.
Figure 4-3 Set Admin Password
1) Enter the same password in Password and Confirm.
2) Click OK to activate and log in the device.
