HIKVISION DS-8108LHFHI-K2 Quick Start Guide

Education Sharing System
7

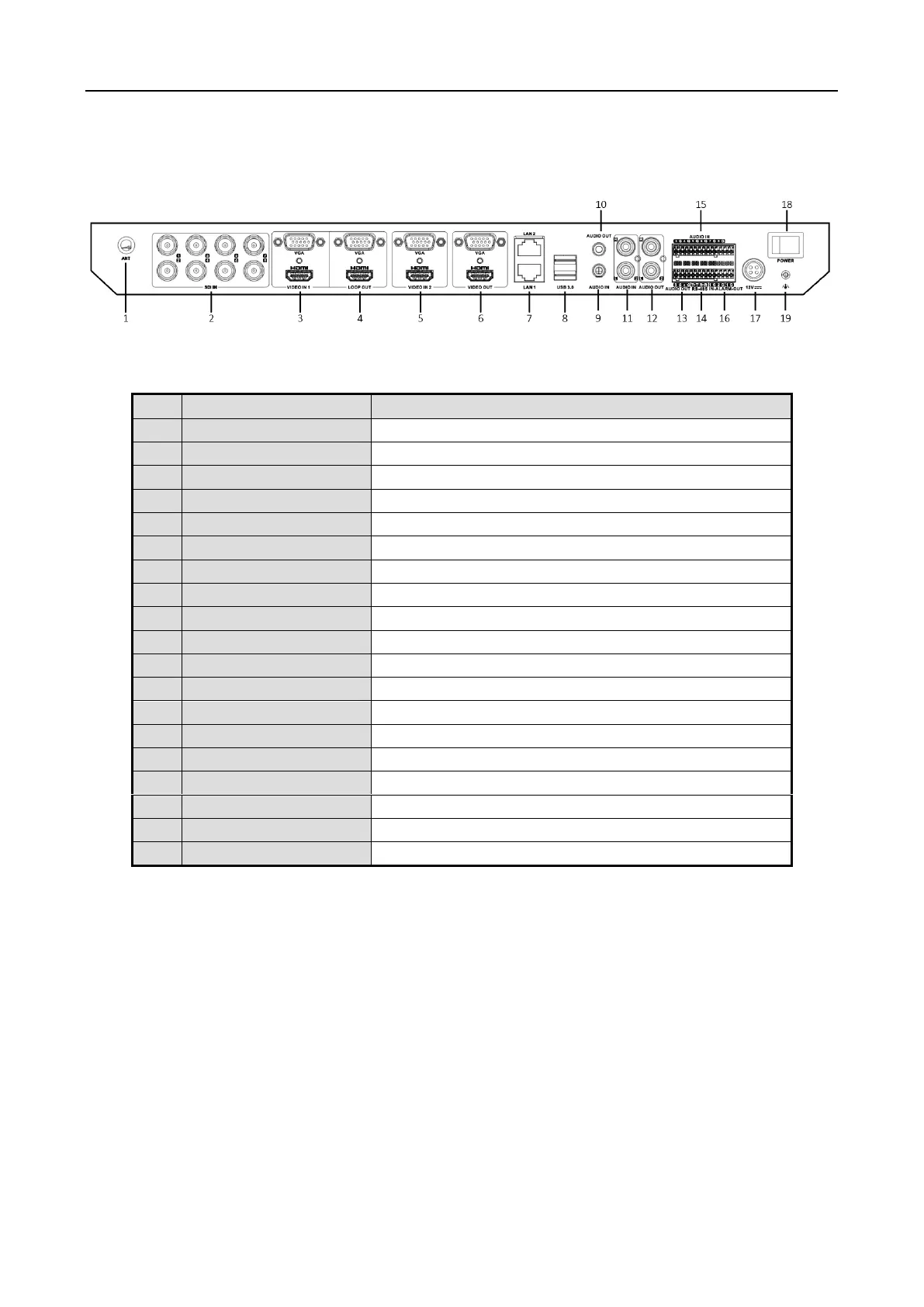

1.2 Rear Panel
Figure 1-2 Rear Panel
Table 1-2 Panel Description
No.
Name
Description
1
ANT
Antenna interface
2
SDI IN
Video inputs of SDI connector
3
VIDEO IN 1
Video inputs of VGA and HDMI interface
4
LOOP OUT
VGA and HDMI loopback interface
5
VIDEO IN 2
Video inputs of VGA and HDMI interface
6
VIDEO OUT
Video outputs of VGA and HDMI interface
7
LAN1/LAN2
Network interfaces
8
USB 3.0
USB 3.0 interfaces
9
AUDIO IN
Audio input, 3.5 mm connector
10
AUDIO OUT
Audio output, 3.5 mm connector
11
AUDIO IN
Audio input, RCA connector
12
AUDIO OUT
Audio output, RCA connector
13
AUDIO OUT
Single track of green connector
14
RS-485
RS-485 connector
15
AUDIO IN
Audio input
16
IN-ALARM-OUT
Alarm input/output connector
17
12 VDC
Power supply
18
POWER
Power switch
19
GND
Ground

HIKVISION DS-8108LHFHI-K2 Specifications

General

Brand	HIKVISION
Model	DS-8108LHFHI-K2
Category	DVR
Language	English
