Network Video Recorder User Manual
108

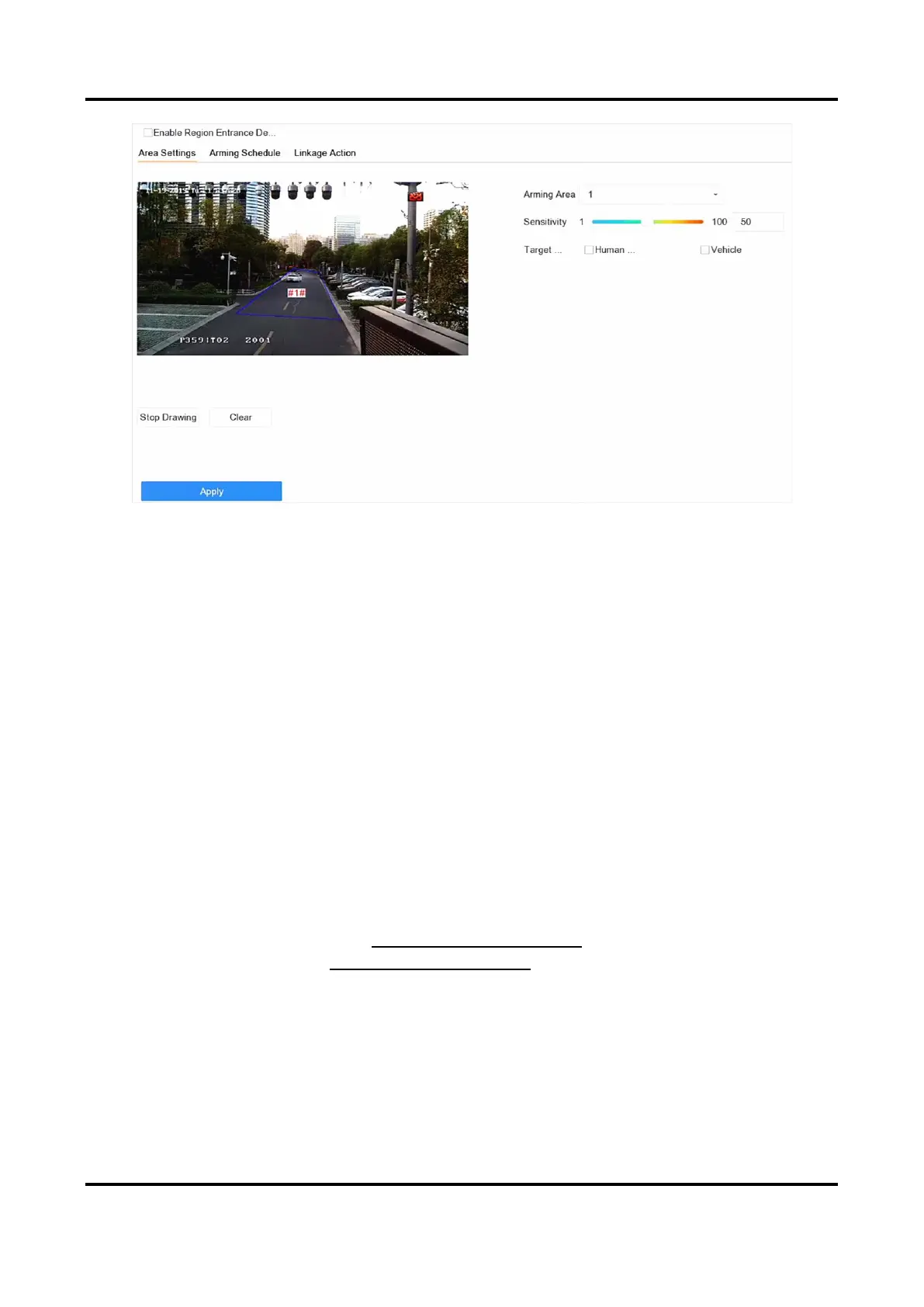

Figure 6-9 Region Entrance Detection
4. Check Enable Region Entrance Detection.
5. Optional: Check Save VCA Picture to save the captured pictures of region entrance detection
pictures.
6. Optional: Check Enable AI by Device.
The device will analyze the video, and cameras only transmit video stream.
7. Set detection rules and detection areas.
1) Select Arming Region. Up to 4 regions are selectable.
2) Set Sensitivity. The higher the value is, the easier the detection alarm will be triggered. Its
range is [0-100].
3) Click Draw Region, and draw a quadrilateral in the preview window.
8. Optional: Draw the maximum size/minimum size for targets. Only the targets in the size ranging
from maximum size to minimum size will trigger line crossing detection.
1) Click Max. Size/Min. Size.
2) Draw an area in preview window.
3) Click Stop Drawing.
9. Optional: Select Target of Interest as Human Body or Vehicle to discard alarms which are not
triggered by human body or vehicle.
10. Set the arming schedule. Refer to Configure Arming Schedule.
11. Set linkage actions. Refer to Configure Linkage Actions.
12. Click Apply.
