Network Video Recorder User Manual
73
8. Optional: Set combined alarm. Refer to Configure Combined Alarm.
5.1.5 Configure Exceptions Alarms
Exception events can be configured to take the event hint in the Live View window and trigger
alarm output and linkage actions.
Steps
1. Go to System → Event → Normal Event → Exception.
2. Optional: Enable the event hint to display it in the live view window.
1) Check Enable Event Hint.
2) Click to select the exception type(s) to take the event hint.

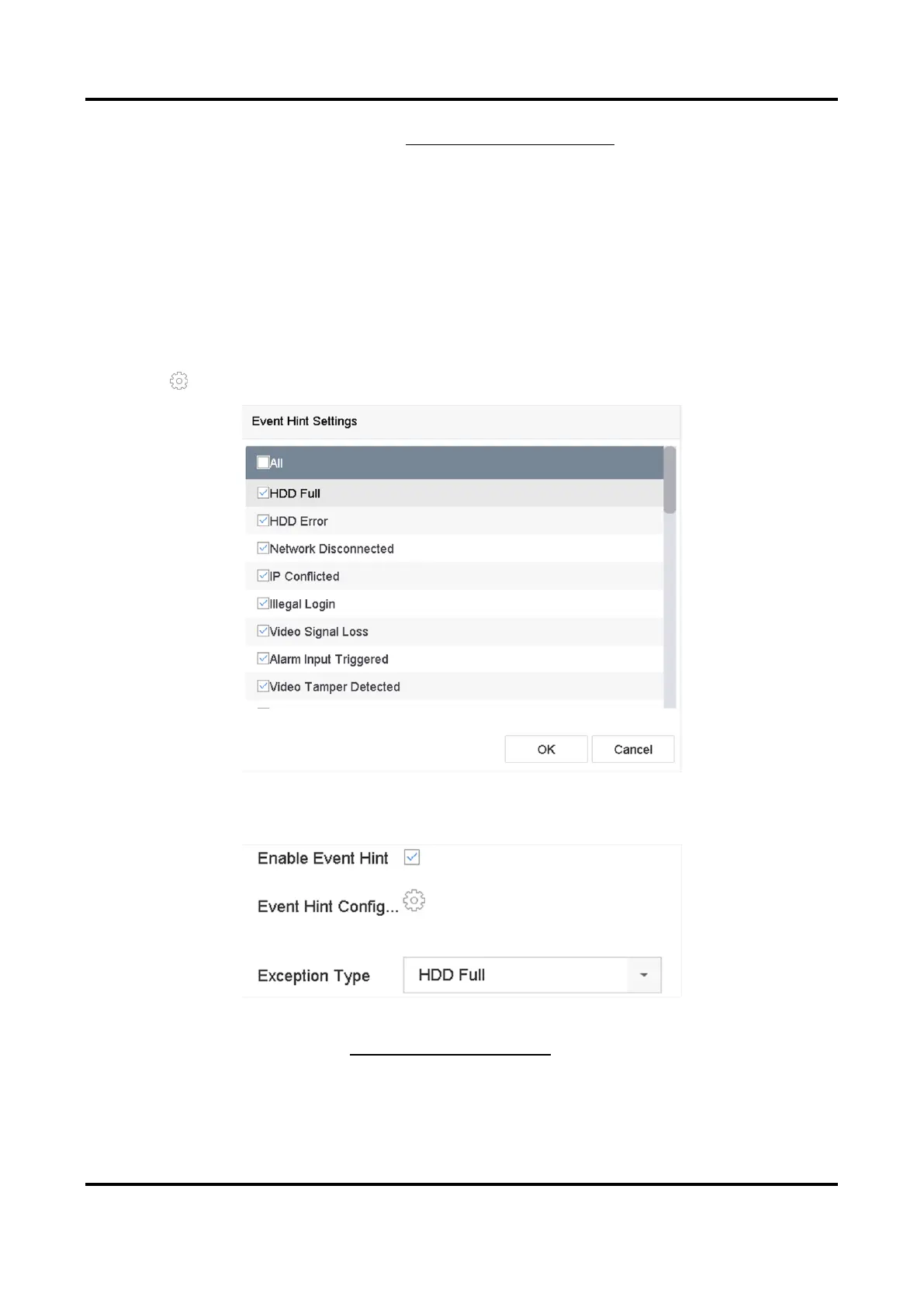

Figure 5-1 Event Hint Settings
3. Select an exception type.
Figure 5-2 Exceptions Handling
4. Set the linkage actions. Refer to Configure Linkage Actions.
