Network Video Recorder User Manual
118

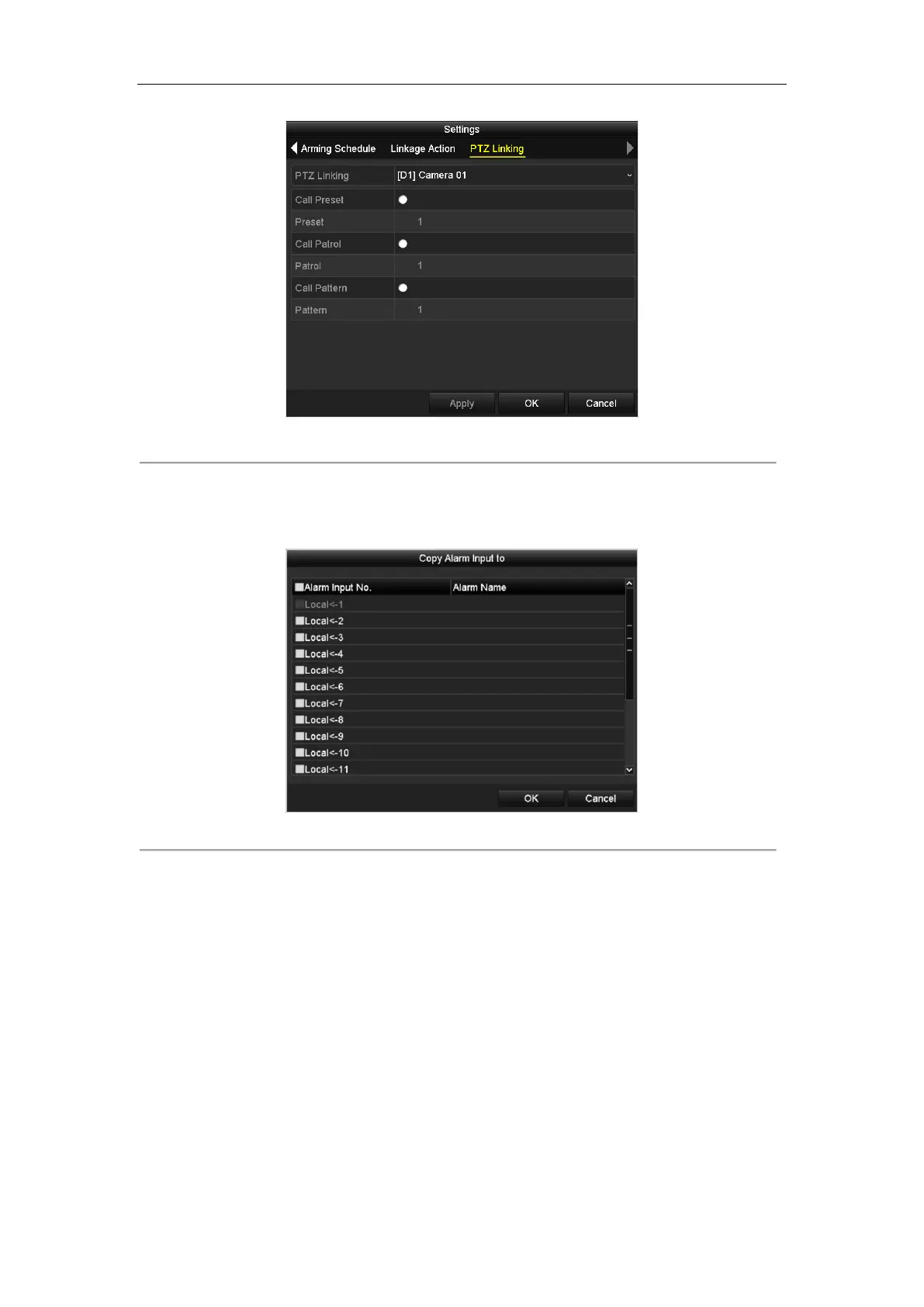

Figure 8. 6 Set PTZ Linking of Alarm Input
7. If you want to set handling action of another alarm input, repeat the above steps.
Or you can click the Copy button on the Alarm Input Setup interface and check the checkbox of alarm inputs
to copy the settings to them.
Figure 8. 7 Copy Settings of Alarm Input

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
