HIKVISION DS-96128NI-I16 User Manual

Network Video Recorder User Manual
140
With the configured VCA detection, the NVR supports the VCA search for the behavior analysis, face capture,
people counting and heat map results.
10.1 Face Search
Purpose:
When there are detected face picture captured and saved in HDD, you can enter the Face Search interface to search
the picture and play the picture related video file according to the specified conditions.
Before you start:
Please refer to Chapter 9.1 Face Detection for configuring the face detection.
Steps:
1. Enter the Face Search interface.
Menu >VCA Search > Face Search
2. Select the camera (s) for the face search.

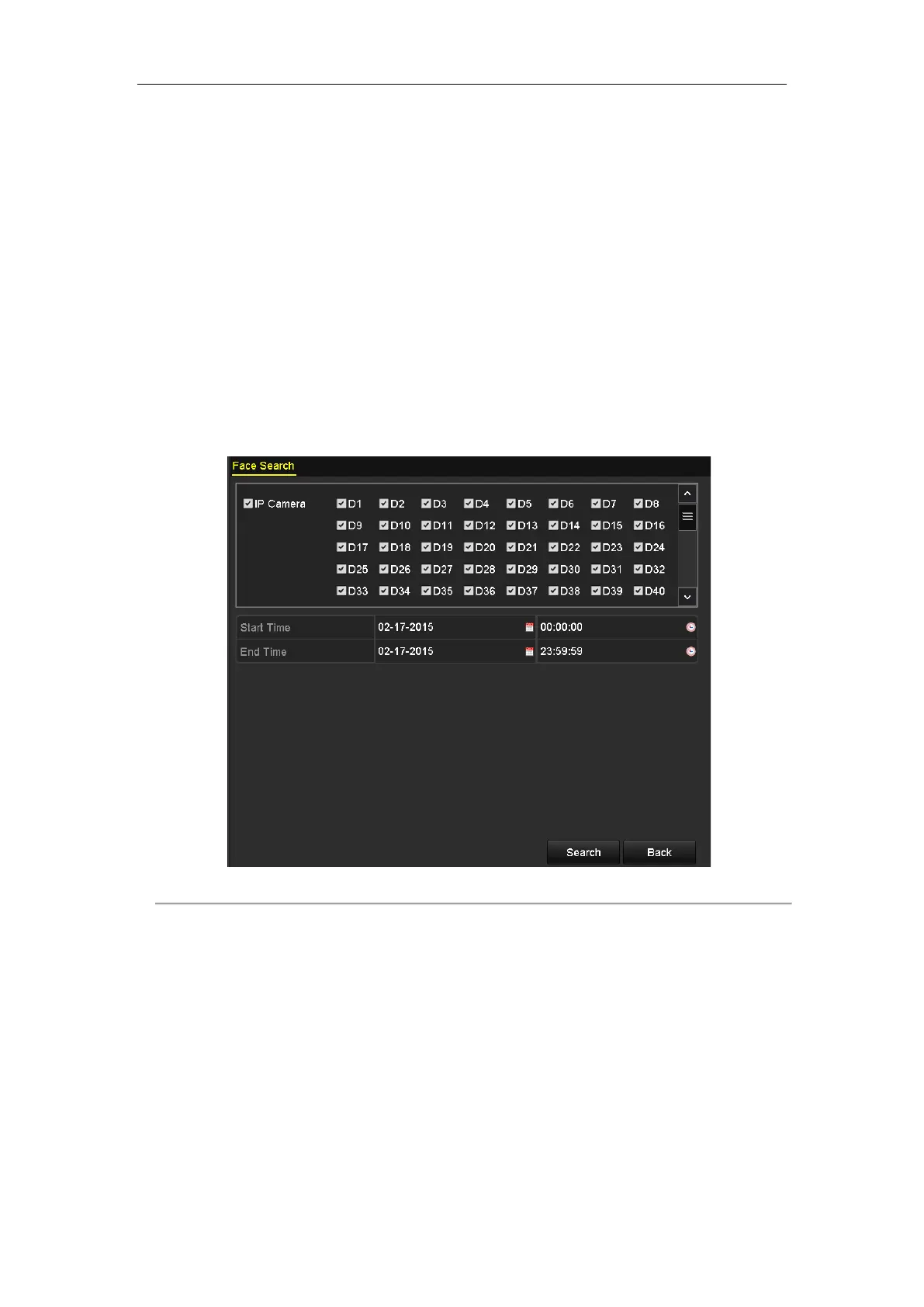

Figure 10. 1 Face Search
3. Specify the start time and end time for search the captured face pictures or video files.
4. Click Search to start searching. The search results of face detection pictures are displayed in list or in chart.

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
