1.1 Front Panel
1.1.1 DS-96000NI-I16 Series

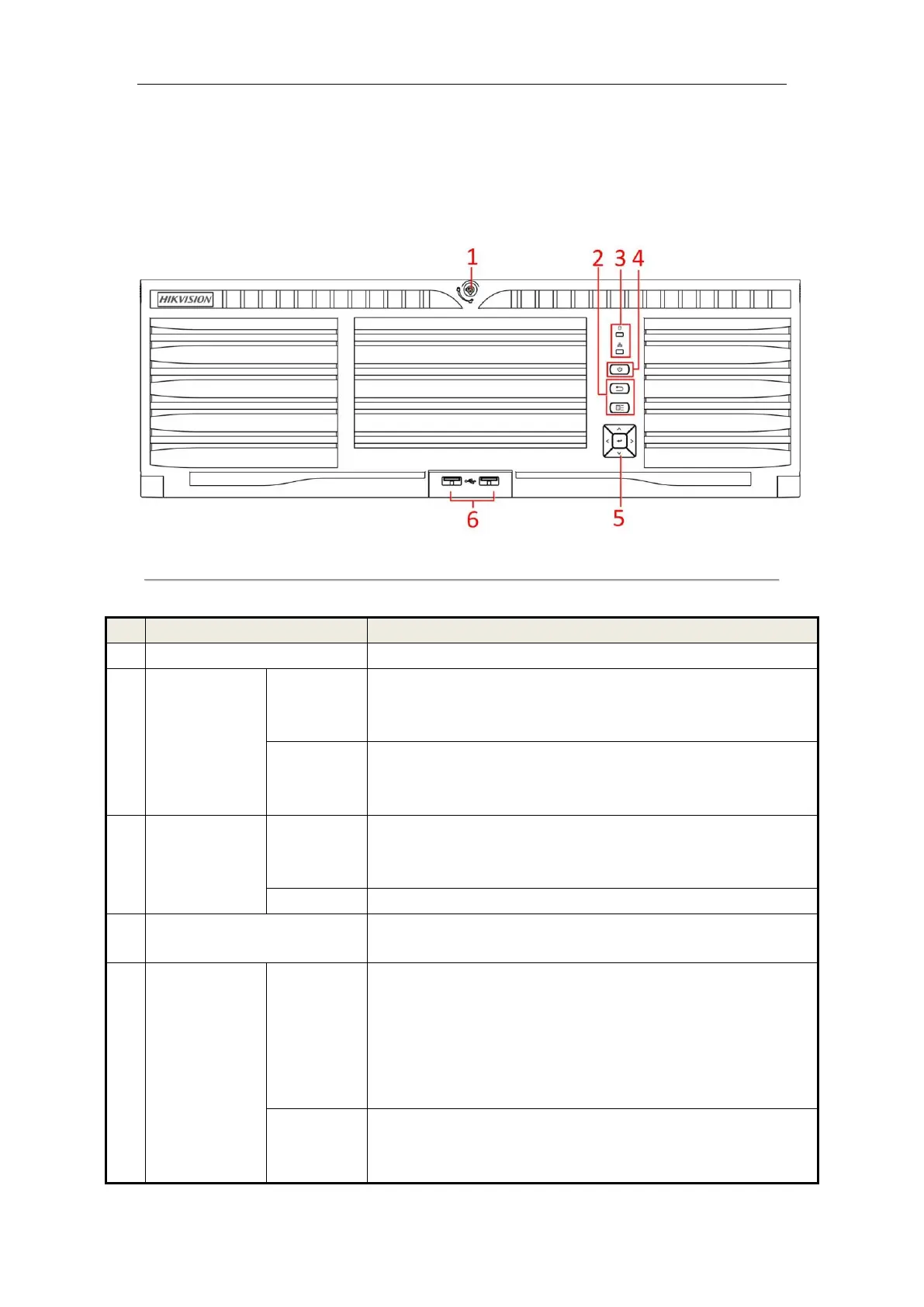

Figure 1. 1 DS-96000NI-I16 Series
Table 1. 1 Description
No.
Name
Description
1
Panel lock
Locks or unlocks the panel by the key.
2
Shortcut buttons
Exit
● Returns to the previous menu.
● Press it twice quickly to switch the main and auxiliary port.
● In live view mode, press it to enter PTZ control interface.
Menu
● Press it to pop up main menu.
● Hold it for 5 seconds to turn on/off button sound.
● During playback, press it to show/hide control panel.
3
Status indicator
HDD
● Solid red: at least one HDD is installed
● No lit: No HDD is detected.
● Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is normal.
4
Power switch
Powers on/off device. Solid blue indicates device is powered on. Solid red
indicates device is shut down.
5
Control buttons
ENTER
● Confirms selection in any of the menu modes.
● Checks the checkbox fields.
● Switches on/off status.
● Plays or pauses the video playing in playback mode.
● Advances the video by a single frame in single-frame playback mode.
● Stops/starts auto switch in auto-switch mode.
DIRECTION
● Navigates between different fields and items in menus.
● In the playback mode, use the Up and Down buttons to speed up and
slow down recorded video. Use the Left and Right buttons to select the

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
