Network Video Recorder User Manual
164

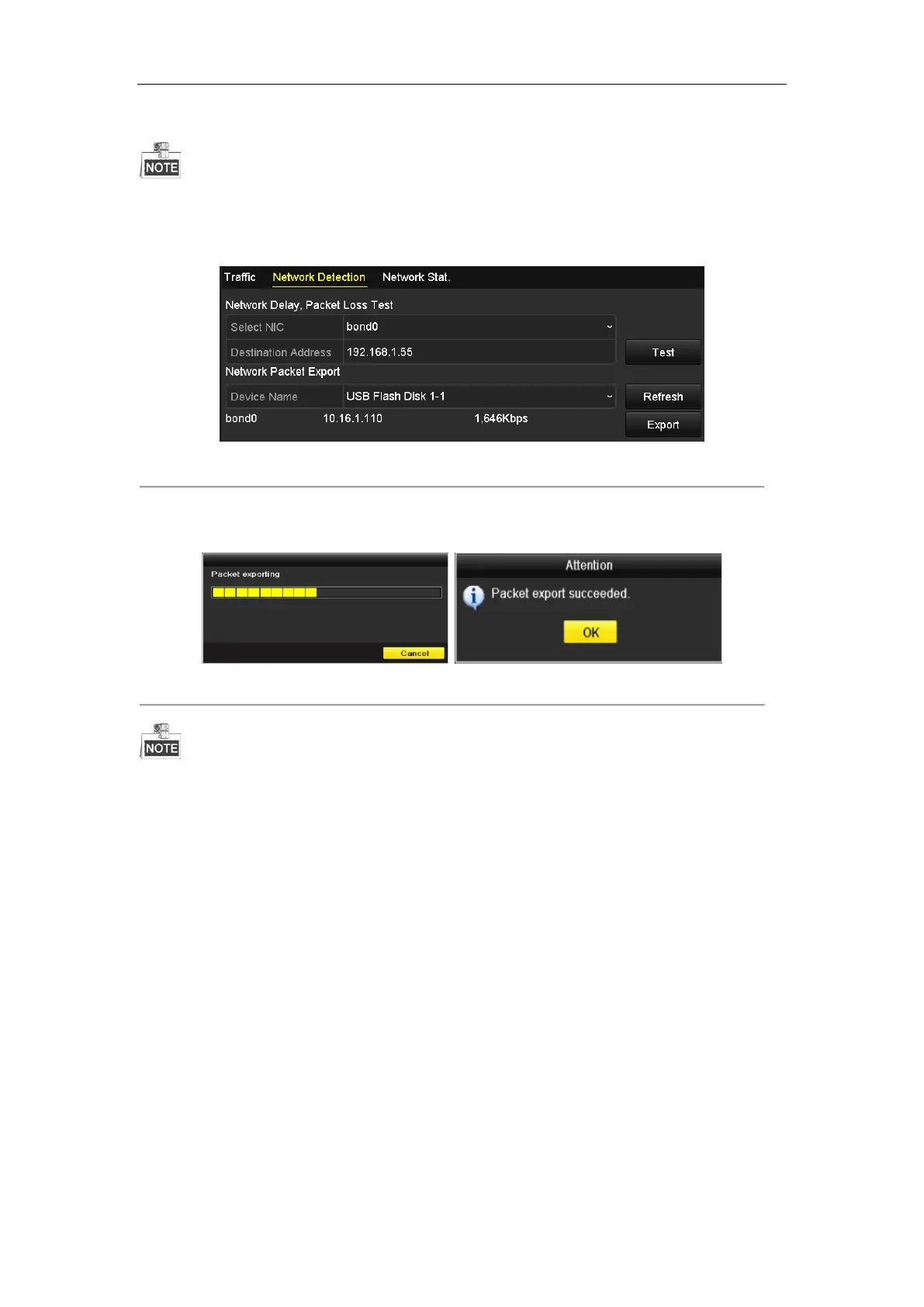

3. Select the backup device from the dropdown list of Device Name, as shown in Figure 11. 30.
Click Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup
device, please check whether it is compatible with the NVR. You can format the backup device if the format is
incorrect.
Figure 11. 30 Export Network Packet
4. Click Export button to start exporting.
5. After the exporting is complete, click OK to finish the packet export, as shown in Figure 11. 31.
Figure 11. 31 Packet Export Attention
Up to 1M data can be exported each time.
11.4.3 Checking the Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click the Status button on the lower- right corner of the page.

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
