HIKVISION DS-96128NI-I16 User Manual

Network Video Recorder User Manual
110
7.3.2 Setting Working Device
Steps:
1. Enter the Hot Spare settings interface.
Menu > Configuration > Hot Spare
2. Set the Work Mode as Normal Mode (default).
3. Check the checkbox of Enable to enable the hot spare function.
4. Enter the IP address and admin password of hot spare device.

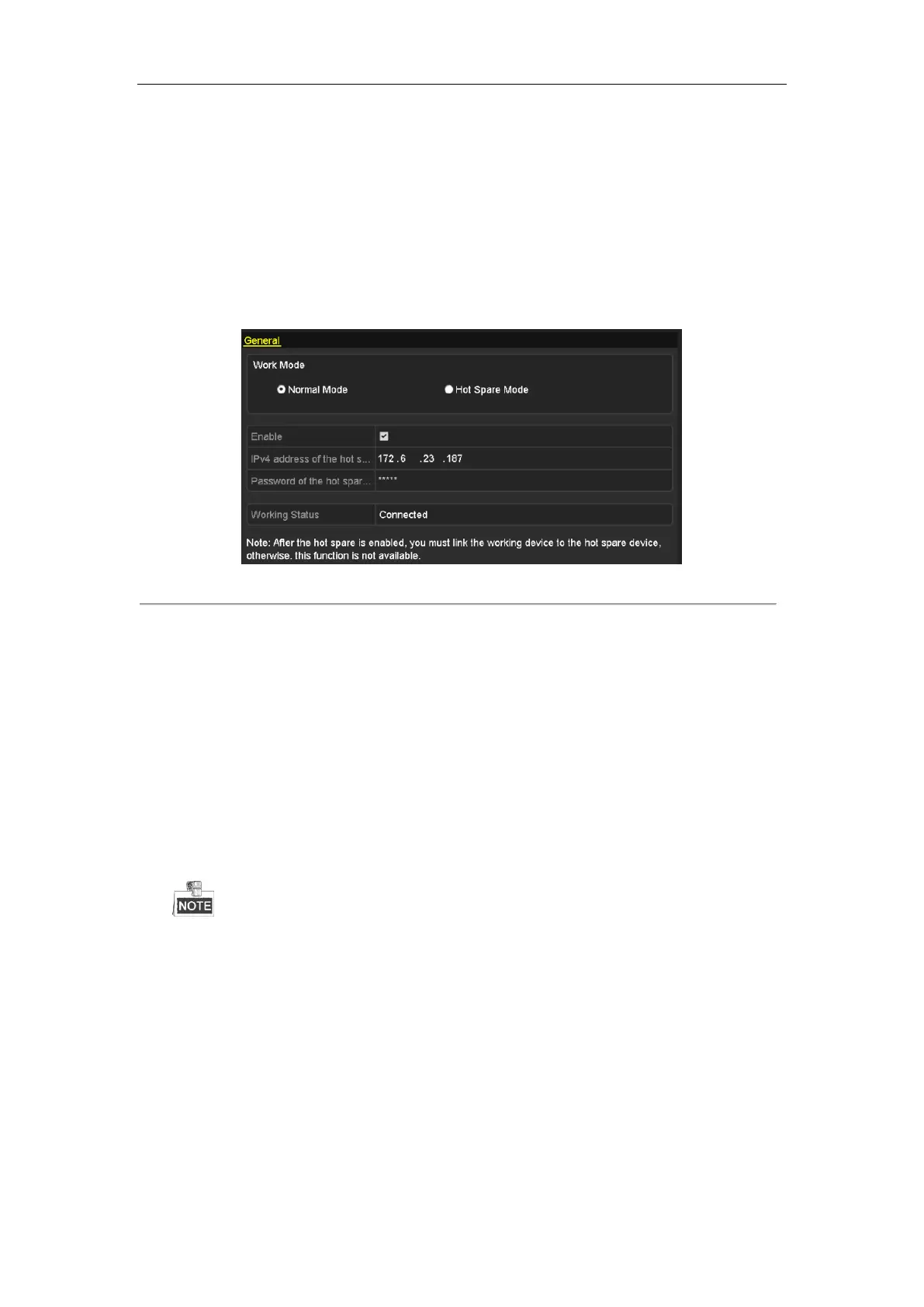

Figure 7. 14 Setting Working Mode for Working device
5. Click the Apply button to save the settings.
7.3.3 Managing Hot Spare System
Steps:
1. Enter the Hot Spare Settings interface of the hot spare device.
Menu > Configuration > Hot Spare
The connected working device is displayed on the device list.
2. Check the checkbox to select the working device from the device list, and click the Add button to link the
working device to the hot spare device.
A hot spare device can connect up to 32 working devices.

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
