HIKVISION DS-A80 Series Quick Operation Guide

Quick Operation Guide of DS-A81 Series Storage System
19
1. On the Network Management interface, select the bond NIC from the list in the Bond NIC
info field.

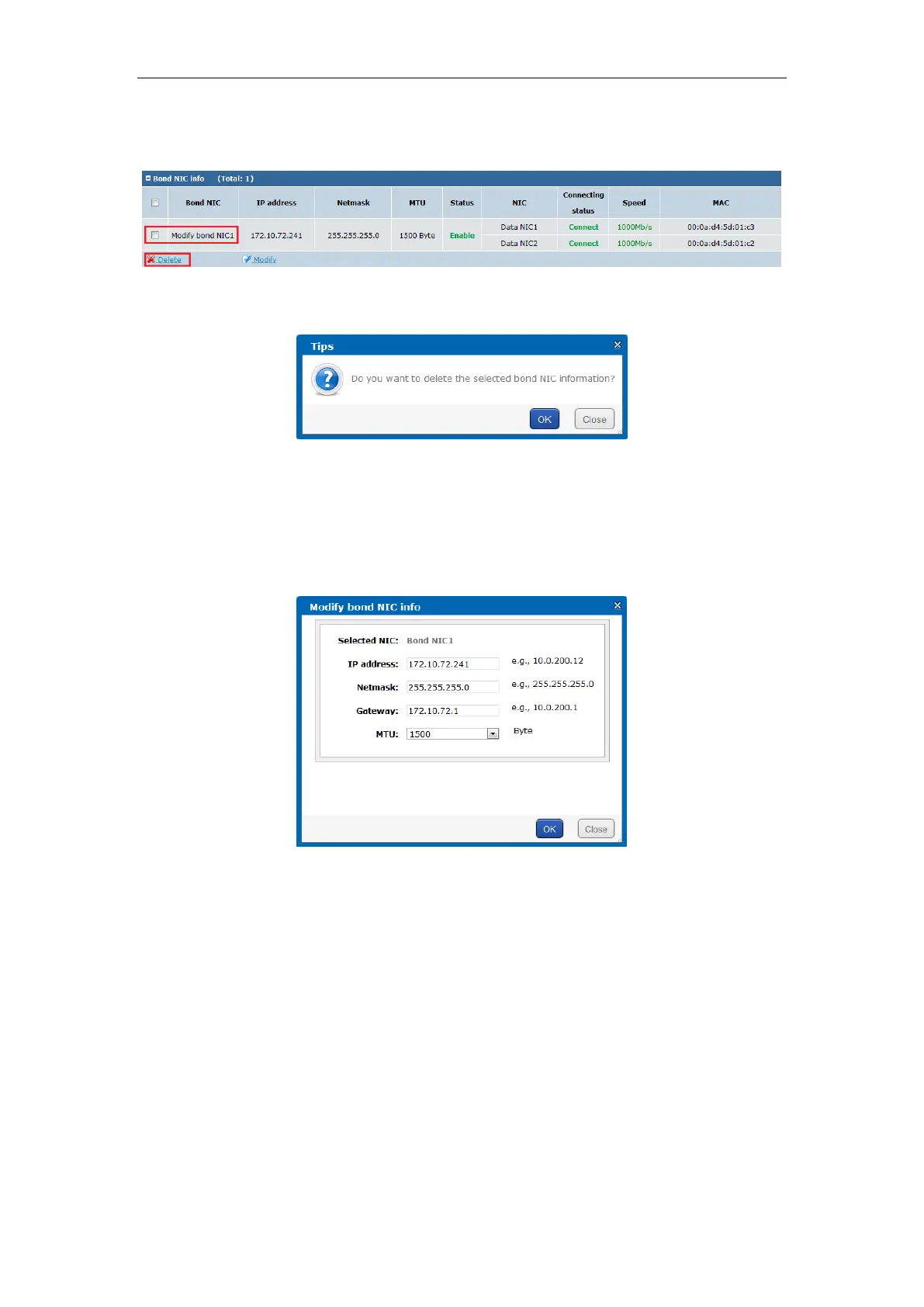

Figure 4. 7 NIC Bonding Information
2. Cick Delete to delete the selected bond NIC and a dialog box pops up.
Figure 4. 8 Delete Bond NIC
3. Click OK to confirm the settings. And a message box will pop up after the selected bond NIC
is deleted.
You can also select the bond NIC, and click Modify to modify the network parameters of the
selected bond NIC, including IP address, subnet mask, gateway and MTU.
Figure 4. 9 Modify Bond NIC Information
4.2.5 Network Connection
Perform the following 4 principles to connect the storage system and the client server (your PC,
laptop or server) to the network.
1. For the network connection stability, it is highly recommended that the storage system and
the client server should be in the same network segment.
2. Connect the client server and storage system to the switch directly.
3. Connect all the data NICs to the switch.
4. The IP address of management NIC (10.254.254.254) is used for debugging and it cannot be
used for video streaming.
