HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
3

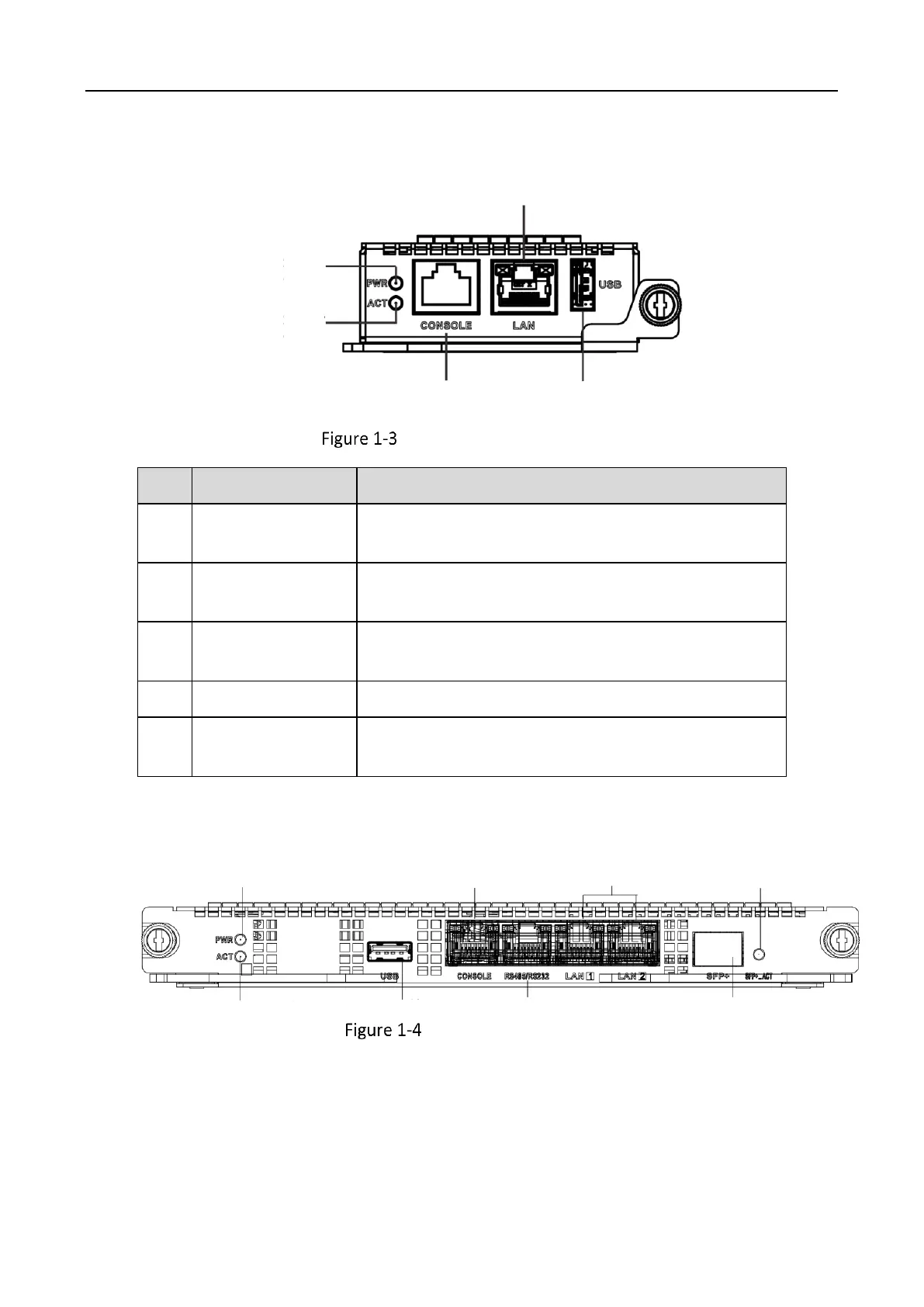

Main Control Board
1
2
4
3
5
Front View of Main Control Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the power
LED is steady green.
2
Active LED
When the board runs normally, the active LED is steady
green.
3
Console port
Used for device debugging, parameter configuration,
etc.
4
Network port
Reserved.
5
USB 2.0 port
Used to connect external devices such as mouse,
keyboard, USB flash drive, etc.
Switch Board
1
2
3
4
5
6
7
8
Front View of Switch Board

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
