HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
17

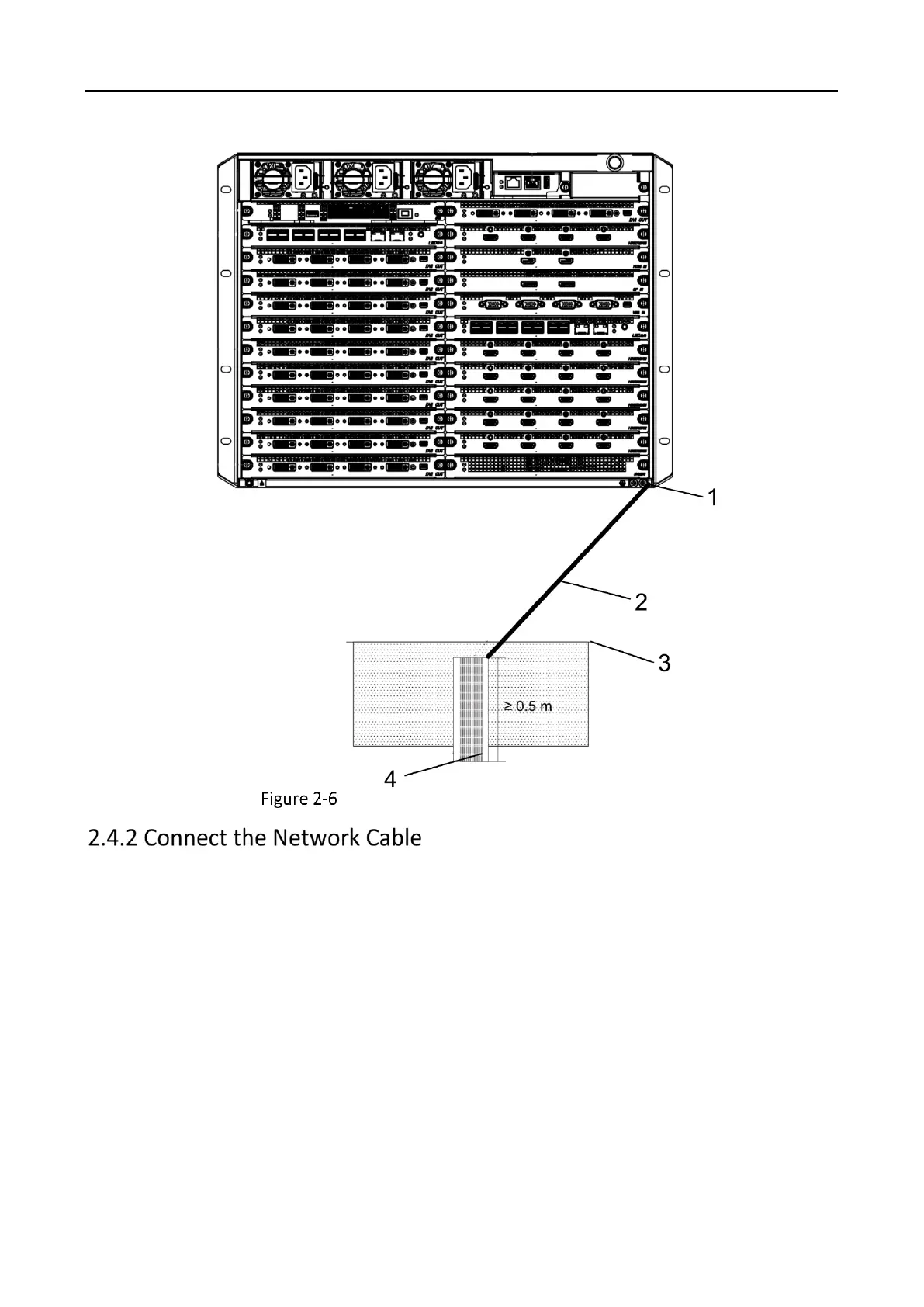

Connect the Grounding Cable to the Ground
The device is connected to the network through networking equipment such as switches. The
following figure shows the network connection between the device and switch through a network
port on the switch board.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
