HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
10

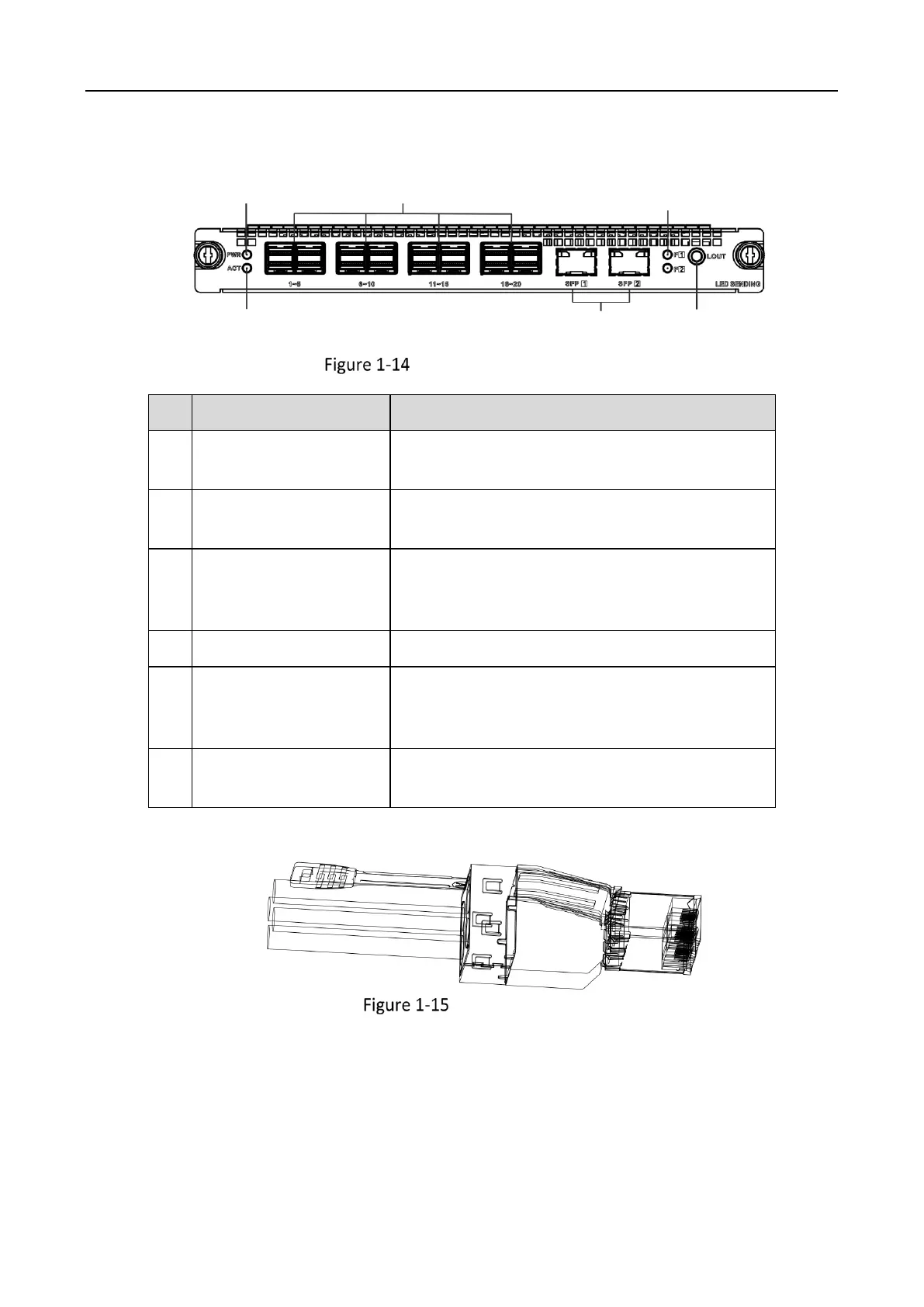

LED Sending Card
1
2
3
4
5
6
Front View of LED Sending Card
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
Gigabit network port
Use the mini SAS cable converting one mini SAS
HD 8X connector to five RJ-45 female connectors
to conect the port.
4
10 Gigabit SFP port
Support two 10 Gigabit optical modules.
5
10 Gigabit SFP port LED
When the inserted 10 Gigabit optical module
functions normally, the 10 Gigabit SFP port LED is
steady green.
6
Audio output port
Support line-out audio output through left and
right channels or two separate channels.
Mini SAS cable

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
