HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
7
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DVI video input port
Provide 4 ports for DVI video input.
4
Audio input port
Provide a mini-DP 4-in-1 line-in audio input port.
Use an external audio adapter cable to connect to
this port for audio input.

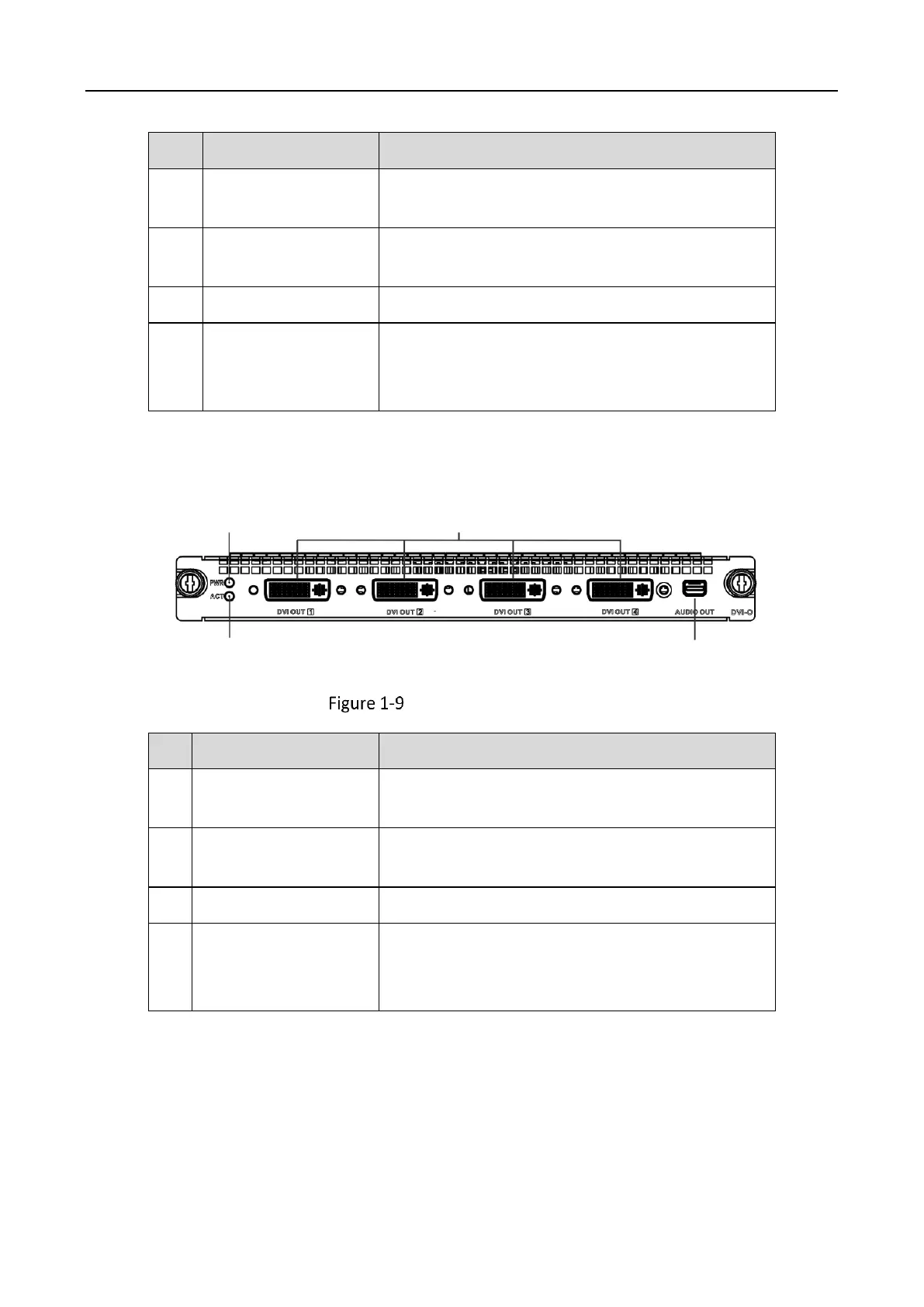

DVI Output Board
1
2
3
4
Front View of DVI Output Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DVI video output port
Provide 4 ports for DVI video output.
4
Audio output port
Provide a mini-DP 4-in-1 line-in audio output port.
Use an external audio adapter cable to connect to
this port for audio output.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
