HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
14

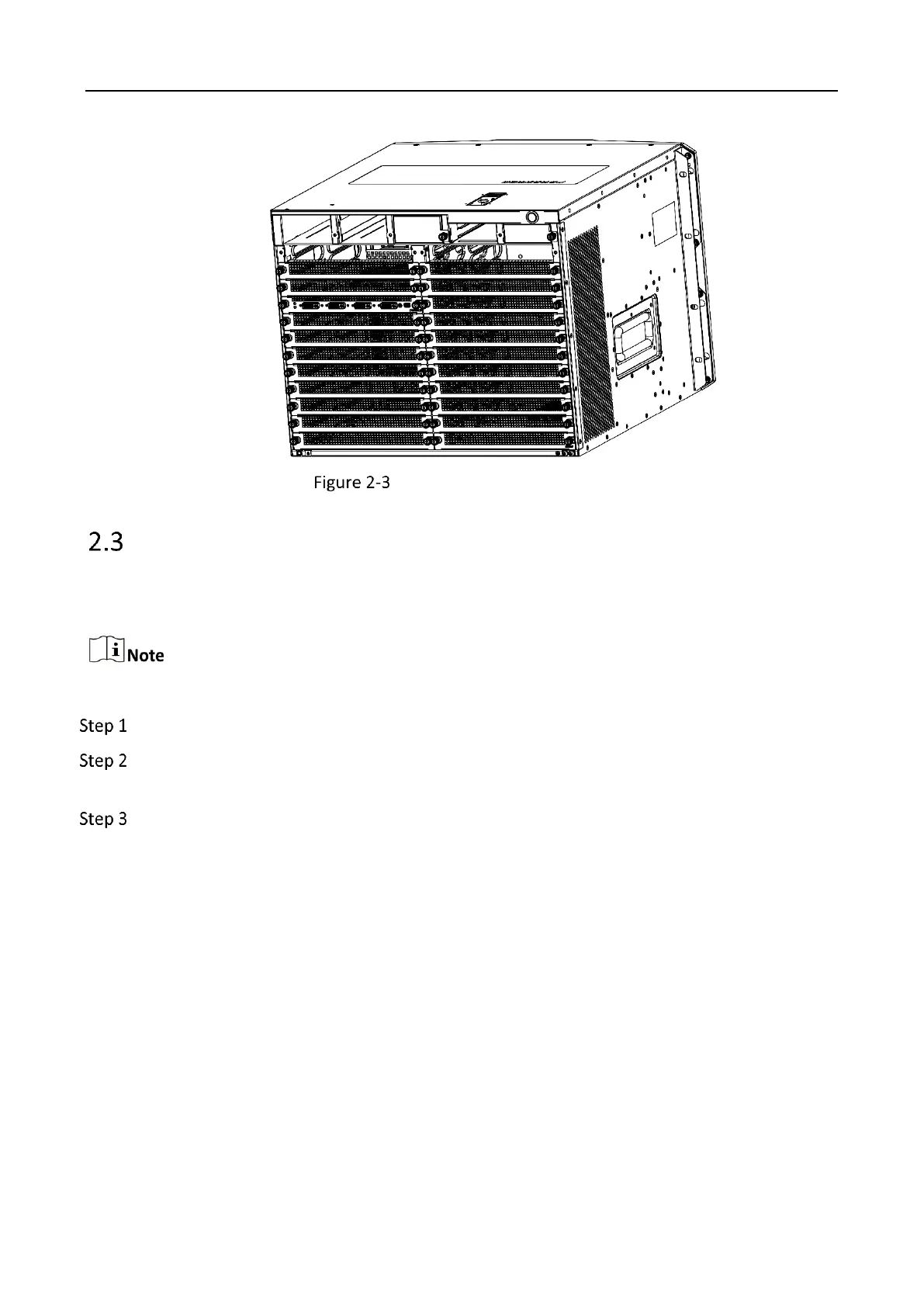

Secure the Service Board to the Slot
Install the Device in the Rack
The device is designed according to 8 U standard rack architecture. The front weight and rear
weight of the device are inconsistent. Lift the device with cautious.
Prepare the rack and rack bracket by yourself.
Verify that the rack is reliably grounded and is stable.
Install a rack bracket on an empty slot of the rack and secure the rack bracket by screws.
Make sure the rack bracket can support the device.
Place the 8 U device on the bracket and use the fixed screws to secure the mounting
brackets to the fixing grooves on both sides of the rack.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
