HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
18
交换板
Switch
board

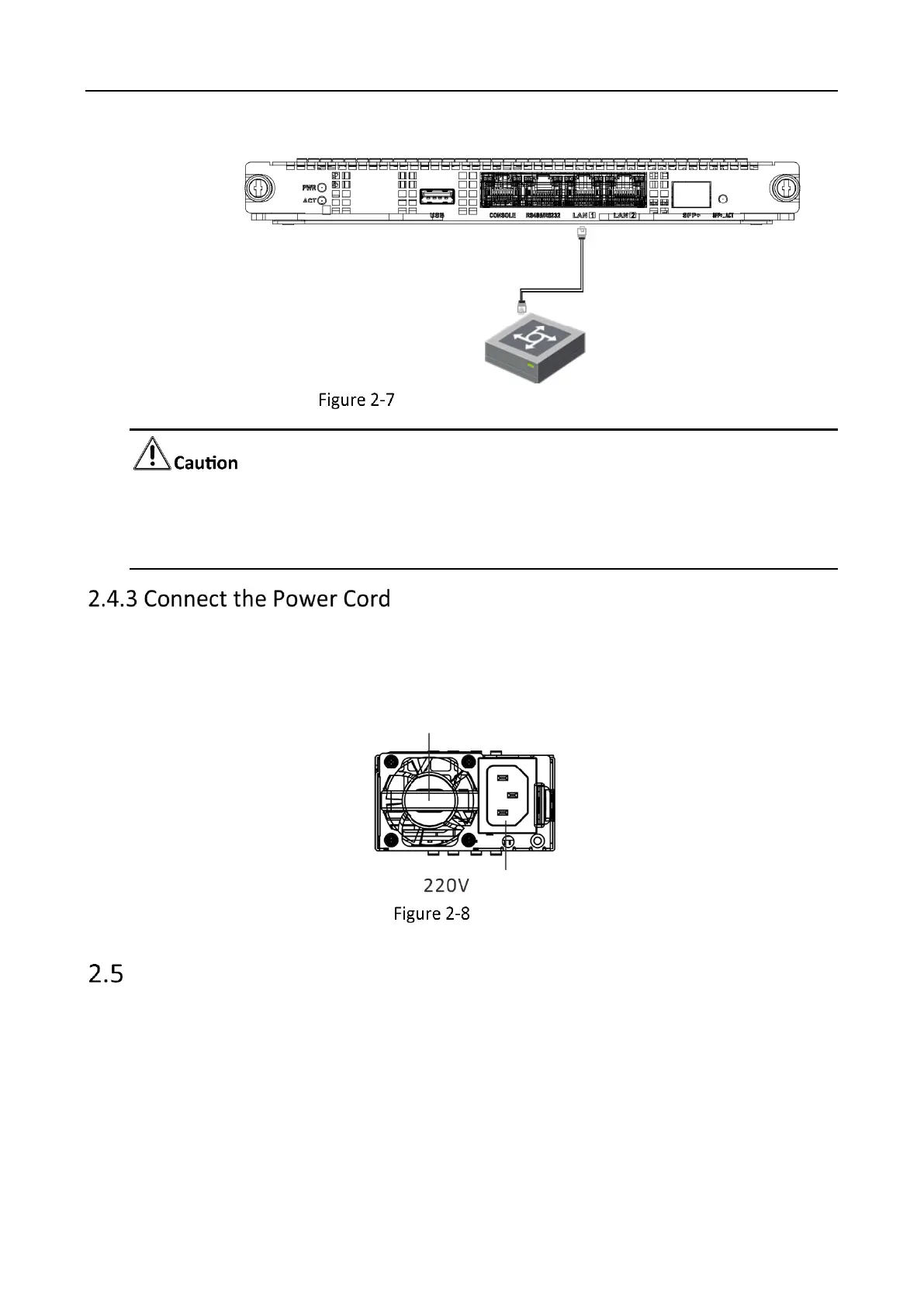

Switch Board Network Connection

It is recommended to use CAT 6 Ethernet cables for connection.

By default, two Gigabit Ethernet ports on the device are not aggregated. Configure the
port aggregation on the connected switch.
The device uses 2 power supplies for redundancy. The power supply socket locates near the fan.
Use two three-phase power cords to connect two power supply sockets to the power supply in the
equipment room.
Fan
Power socket
Power Supply
Power On the Device
After the power cord is connected for the first time, the device is powered on. When the device runs,
you can press and hold the power switch to shut down the device. When the device is powered off,
you can press the power switch to power on the device.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
