HIKVISION DS-C30S-S23 Quick Start Guide

Video Wall Controller • Quick Start Guide
15
Mounting
bracket
Mounting
bracket
Fixed screw
Fixed screw
Fixed screw
Fixed screw
Mounting
bracket handle
Mounting
bracket handle

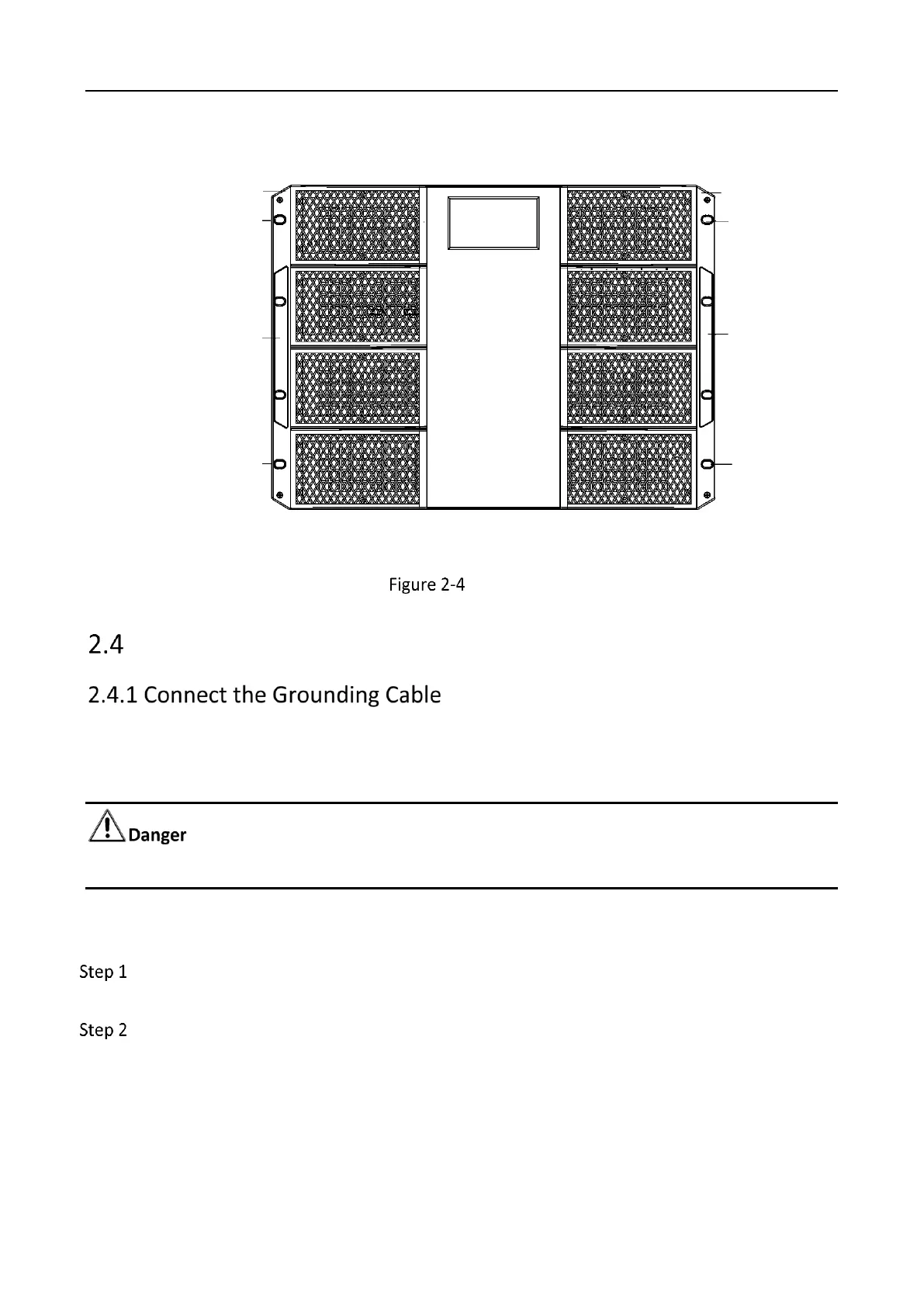

Rack Mount the 8 U Device
Connect Cables
Connecting the grounding cable can release the excessive voltage and current induced by lightning
shock. Please select the most suitable connection mode to protect the grounding cable according
to the installation environment.
The device must be grounded to ensure the personal safety and device safety.
With Grounding Row
Connect one end of the grounding cable (2) to the grounding terminal of the grounding row
(3) in the equipment room.
Connect the other end of the grounding cable to a grounding terminal (1) of the device and
tighten the screw.

HIKVISION DS-C30S-S23 Specifications

General

Product color	Black
Rack capacity	8U
Built-in display	Yes
Housing material	Metal
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	1000 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RJ-45 ports quantity	2
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	447 mm
Width	442 mm
Height	354.8 mm
