Video Wall Controller • Quick Start Guide
6
DP Input Board
1
2
1 3

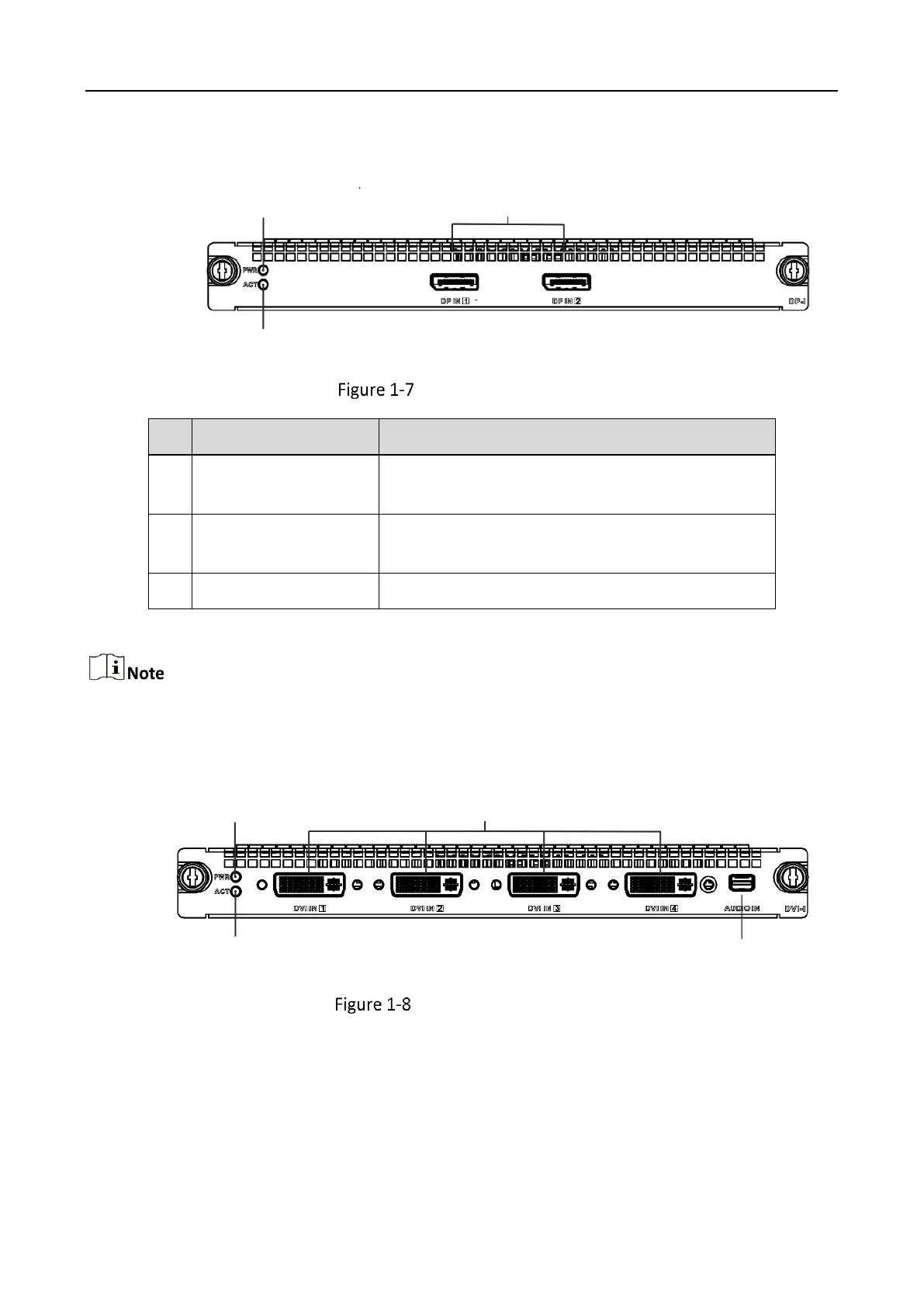

Front View of DP Input Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
DP video input port
Provide 2 ports for DP UHD video input.
To connect a 4K@60 Hz video signal source, only one DP video input port can be used.
DVI Input Board
1
2
3
4
Front View of DVI Input Board
