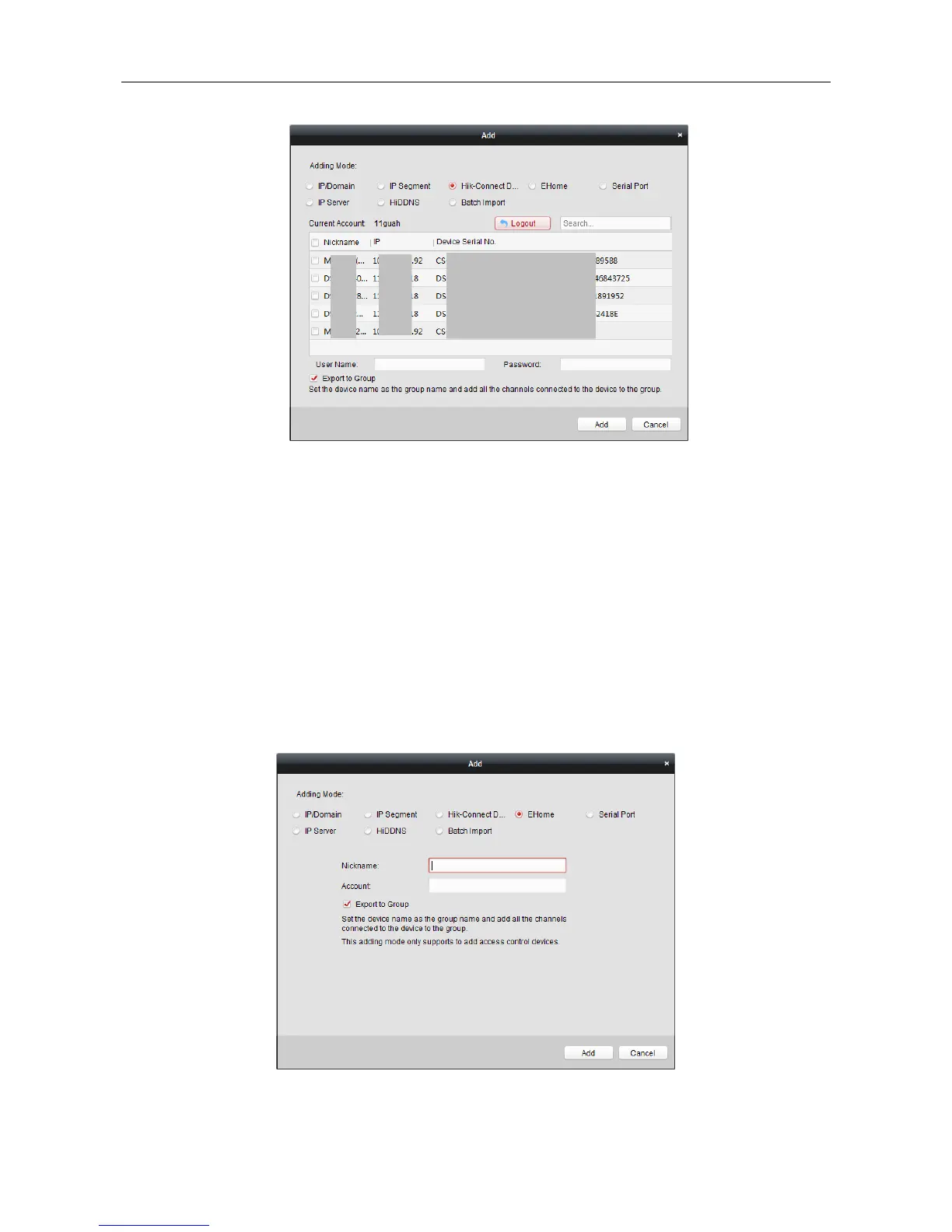

Video Access Control Terminal·User Manual
39
6. Check the checkbox(es) to select the device as desired.
7. Input the user name and password for the devices to be added.
8. Optionally, check the Export to Group checkbox to create a group by the device name.
You can import all the channels of the device to the corresponding group by default.
9. Click Add to add the devices.
Adding Devices by EHome Account
Purpose:
You can add access control device connected via EHome protocol by inputting the EHome account.
Before you start: Set the network center parameter first. For details, refer to Chapter 7.4.4
Network Settings.
Steps:
1. Click Add to open the device adding dialog box.
2. Select EHome as the adding mode.
3. Input the required information.

Table of Contents

Other manuals for HIKVISION DS-K1T501SF

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1T501SF and is the answer not in the manual?

HIKVISION DS-K1T501SF Specifications

General IconGeneral
TypeBasic access control reader
Product colorGray
Cards capacity50000 cards
Housing materialMetal
Keypad integratedNo
Fingerprint readerYes
Authentication typeAccess chip/card, Biometric, Face recognition
Transaction capacity200000
Fingerprint sensor typeOptical
Identification (1:N) time1.5 s
False Rejection Rate (FRR)0.01 %
False Acceptance Rate (FAR)0.001 %
Access chip/card reader typeContactless
International Protection (IP) codeIP65
DC current (max)600 A
DC voltage range12 V
Total megapixels2 MP
Front camera typeSingle camera
PC connected-
RS-485 ports1
Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth218 mm
Width78 mm
Height41 mm
