HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
45

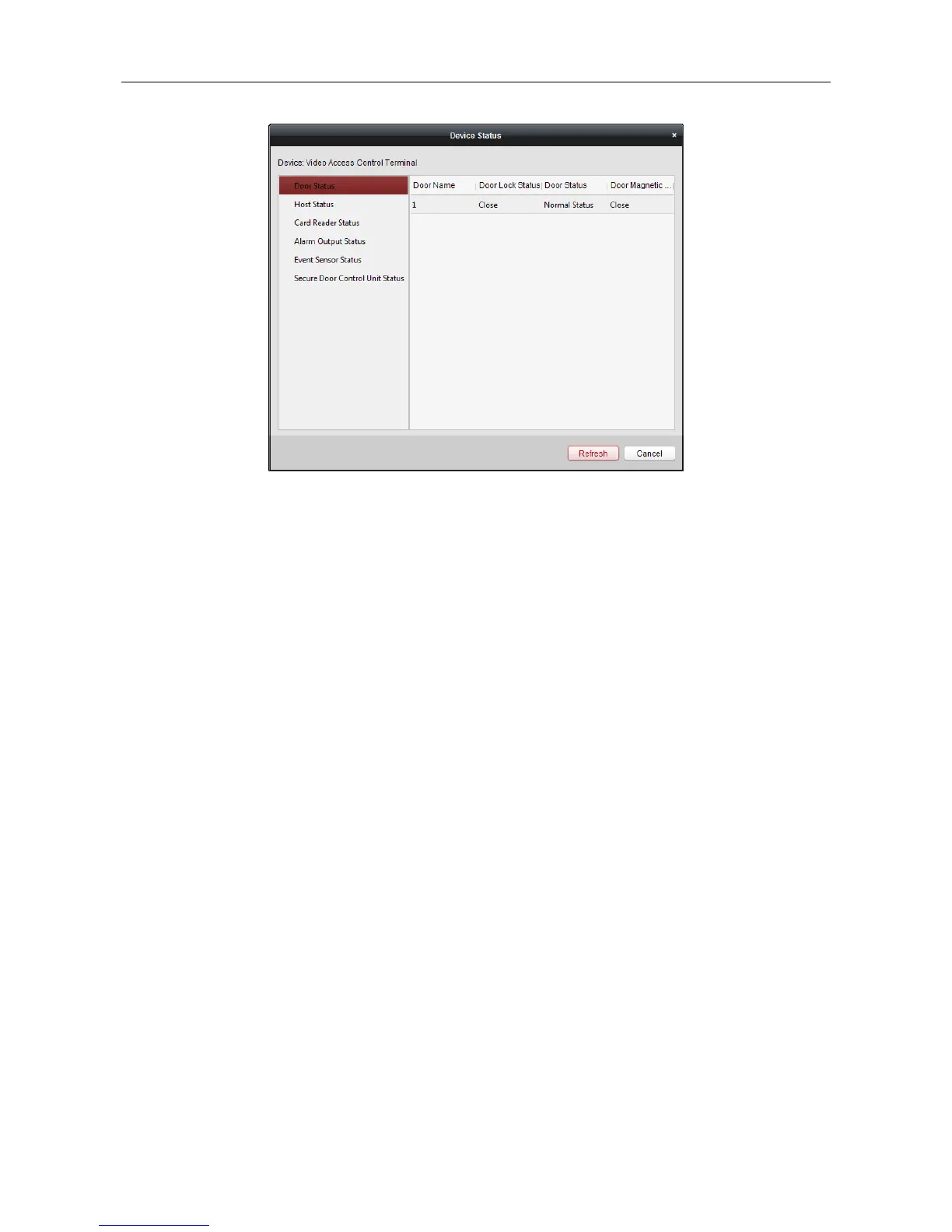

Note: The interface may different from the picture displayed above. Refer to the actual interface
when adopting this function.
 Door Status: The status of the connected door.
 Host Status: The status of the host, including Storage Battery Power Voltage, Device Power
Supply Status, Multi-door Interlocking Status, Anti-passing Back Status, and Host Anti-Tamper
Status.
 Card Reader Status: The status of card reader.
 Note: If you use the card reader with RS-485 connection, you can view the status of online or
offline. If you use the card reader with Wiegand connection, you can view the status of offline.
 Alarm Output Status: The alarm output status of each port.
 Event Sensor Status: The event sensor status of each port.
 Secure Door Control Unit Status: The online status and tamper status of the Secure Door
Control Unit.
7.4.3 Editing Basic Information
Purpose:
After adding the access control device, you can edit the device basic information.
Steps:
1. Select the device in the device list.
2. Click Modify to pop up the modifying device information window.
3. Click Basic Information tab to enter the Basic Information interface.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
