Video Access Control Terminal·User Manual
95

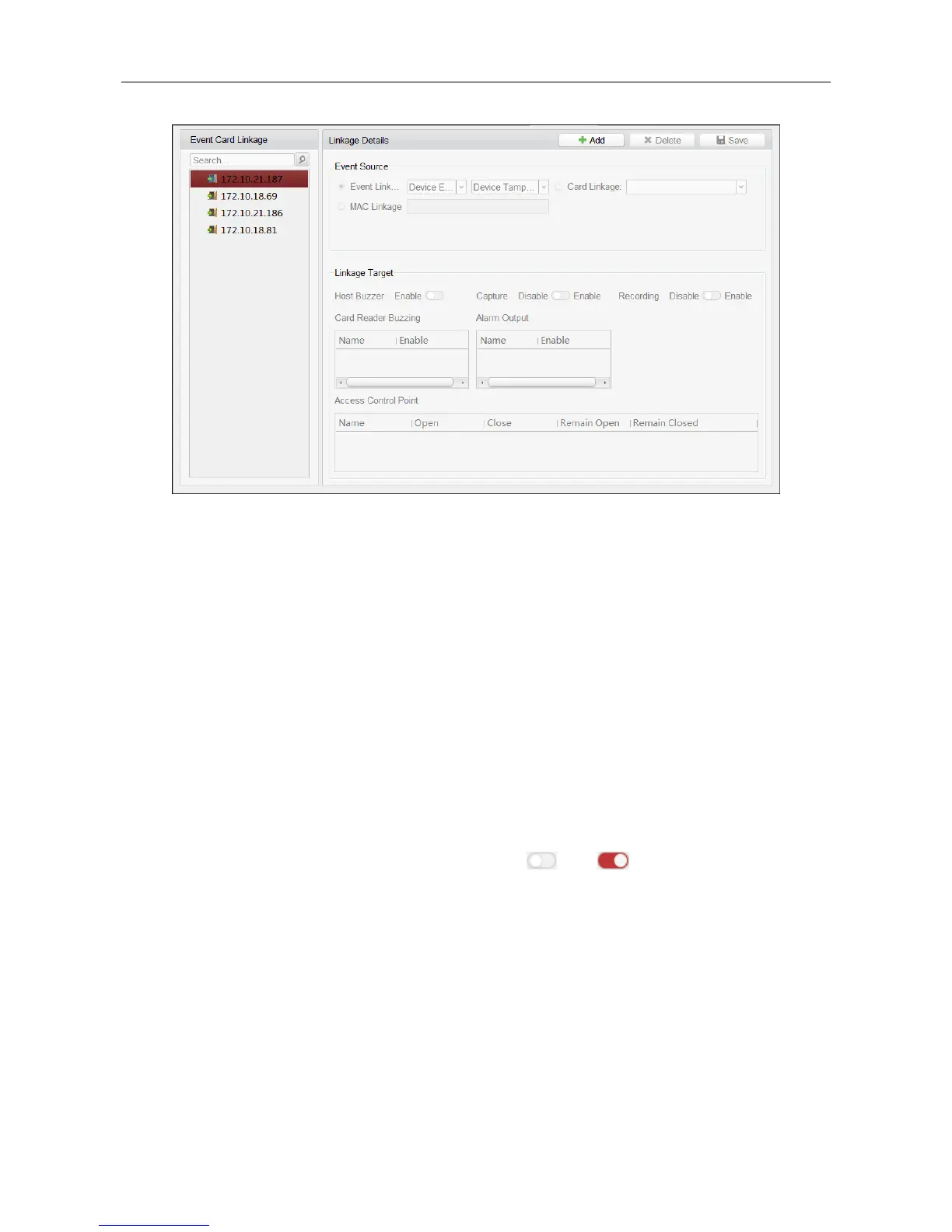

Select the access control device from the list on the left.
Click Add button to add a new linkage. You can select the event source as Event Linkage, Card
Linkage, or MAC Linkage.
Event Linkage
For the event linkage, the alarm event can be divided into four types: device event, alarm input,
door event, and card reader event.
Steps:
1. Click to select the linkage type as Event Linkage, and select the event type from the dropdown
list.
 For Device Event, select the detailed event type from the dropdown list.
 For Alarm Input, select the type as alarm or alarm recovery and select the alarm input
name from the table.
 For Door Event, select the detailed event type and select the source door from the table.
 For Card Reader Event, select the detailed event type and select the card reader from the
table.
2. Set the linkage target, and switch the property from to to enable this function.
 Host Buzzer: The audible warning of controller will be enabled/disabled.
 Capture: The real-time capture will be enabled.
 Card Reader Buzzer: The audible warning of card reader will be enabled/disabled.
 Alarm Output: The alarm output will be enabled/disabled for notification.
 Access Control Point: The door status of open, close, remain open, and remain closed will
be enabled.
Notes:
 The door status of open, close, remain open, and remain close cannot be triggered at
the same time.
 The target door and the source door cannot be the same one.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
