HIKVISION DS-K1T642MFW User Manual

Note
●
You should set the face recognion terminal's Wiegand direcon as Input to connect to a
Wiegand card reader. If connects to an access controller, you should set the Wiegand direcon as
Output to transmit authencaon informaon to the access controller.
●
For details about Wiegand
direcon sengs, see Set Wiegand Parameters .
●
Do not wire the device to the electric supply directly.
4.3 Wire Secure Door Control Unit
You can connect the terminal with the secure door control unit.

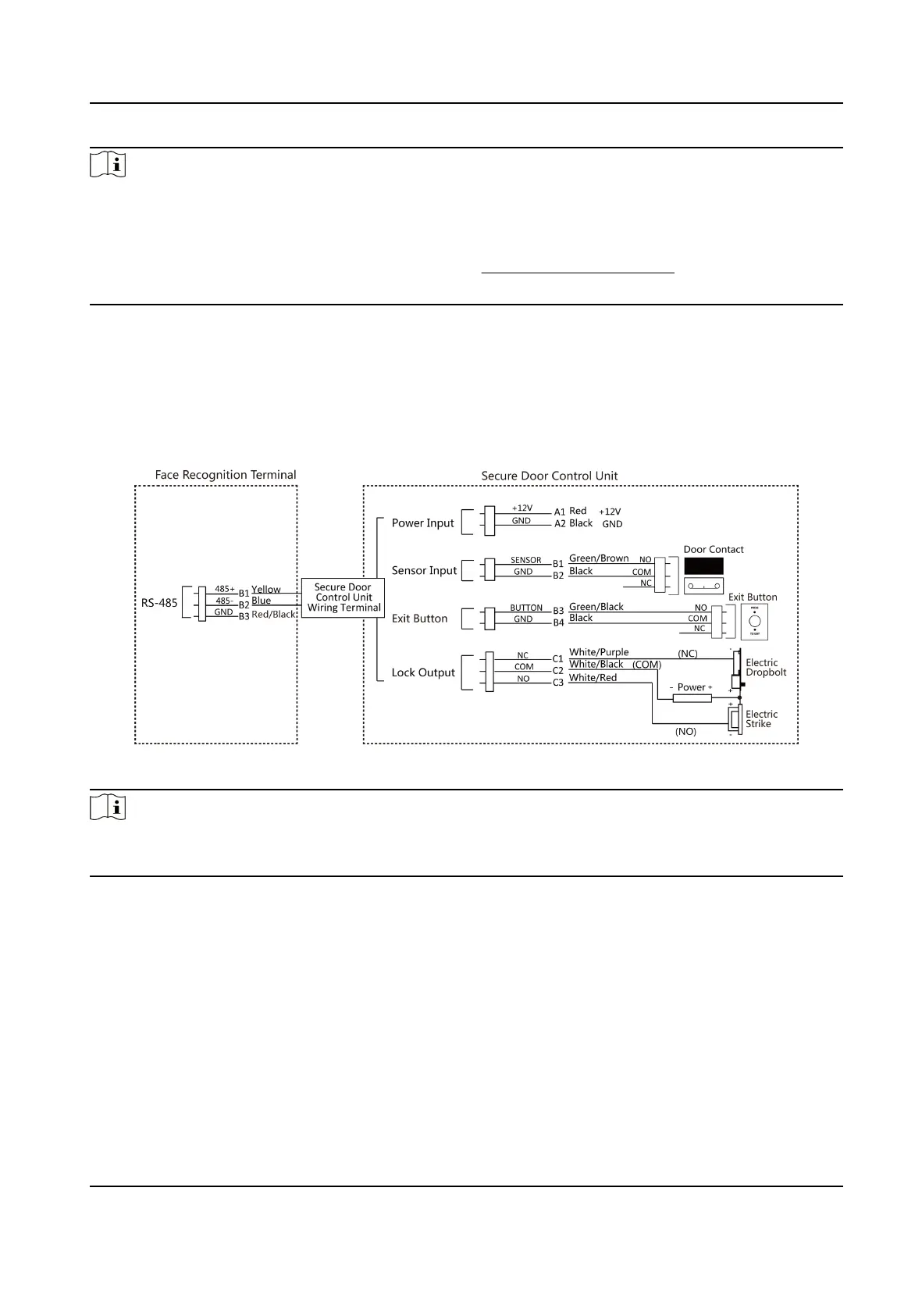

The wiring diagram is as follows.
Figure 4-2 Secure Door Control Unit Wiring
Note
The secure door control unit should connect to an external power supply separately. The suggested
external power supply is 12V, 0.5A.
4.4 Wire Fire Module
4.4.1 Wiring Diagram of Door Open When Powering O
Lock Type: Anode Lock, Magnec Lock, and Electric Bolt (NO)
Security Type: Door Open When Powering O
Scenario: Installed in Fire Engine Access
Face Recognion Terminal User Manual
13

HIKVISION DS-K1T642MFW Specifications

General

Type	-
Log capacity	150000
Product color	Black
Cards capacity	10000 cards
RFID frequency	13.56 MHz
Languages support	ARA, ENG, ESP, THA, POR, RUS, VIE
Recommended usage	Indoor
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Access chip/card reader type	Contactless
RS-485 ports	1
Cabling technology	10/100/1000
Supported network protocols	ISUP 5.0, ISAPI, NetSDK, HikCentral Pro OpenAPI, Hik-ProConnect OpenAPI
Display diagonal	4.3 \
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 90 %
Total megapixels	2 MP
Front camera type	Dual camera
Viewing angle, vertical	75.5 °
Viewing angle, horizontal	41.5 °

Weight and Dimensions

Depth	20 mm
Width	118 mm
