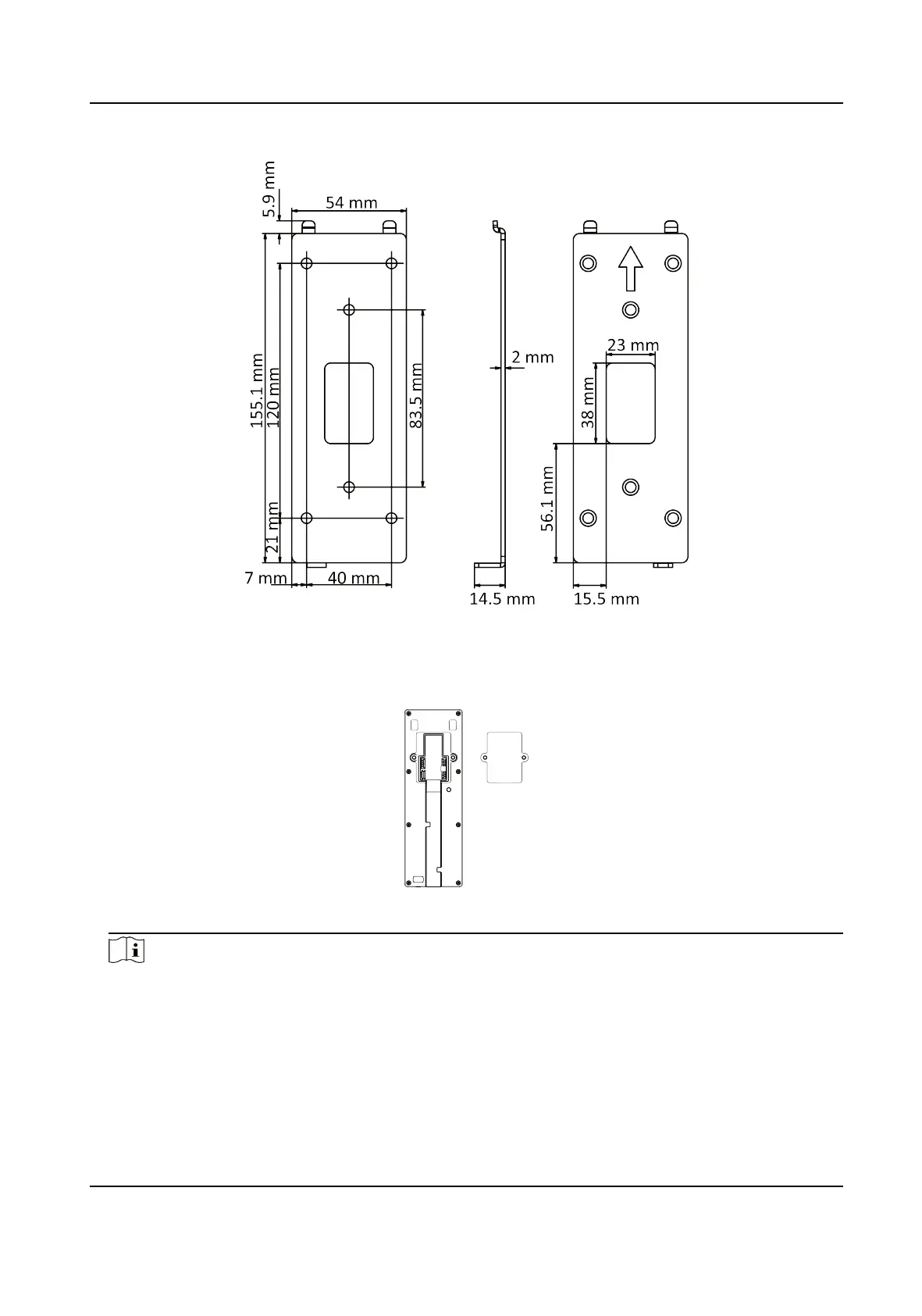

Figure 3-9 Mounng Plate Dimension
3.
Remove the back panel to display the wiring area. Wire the cables and install the back panel
back.
Figure 3-10 Remove Back Panel
Note
Apply Silicone sealant among the cable wiring area to keep the raindrop from entering.
