Video Intercom Door Station·User Manual
7
5 Installation and Wiring
5.1 Installation of DS-KV8X02-1A Model
To install the door station onto the wall, you are required to utilize a matched gang box.
5.1.1 Gang Box for DS-KV8X02-1A Model
Please refer to the following figures for the dimensions of gang box for DS-KV8102-1A/
DS-KV8202-1A/ DS-KV8402-1A door station.
89
168
49
54
97
50
45
100
73.92

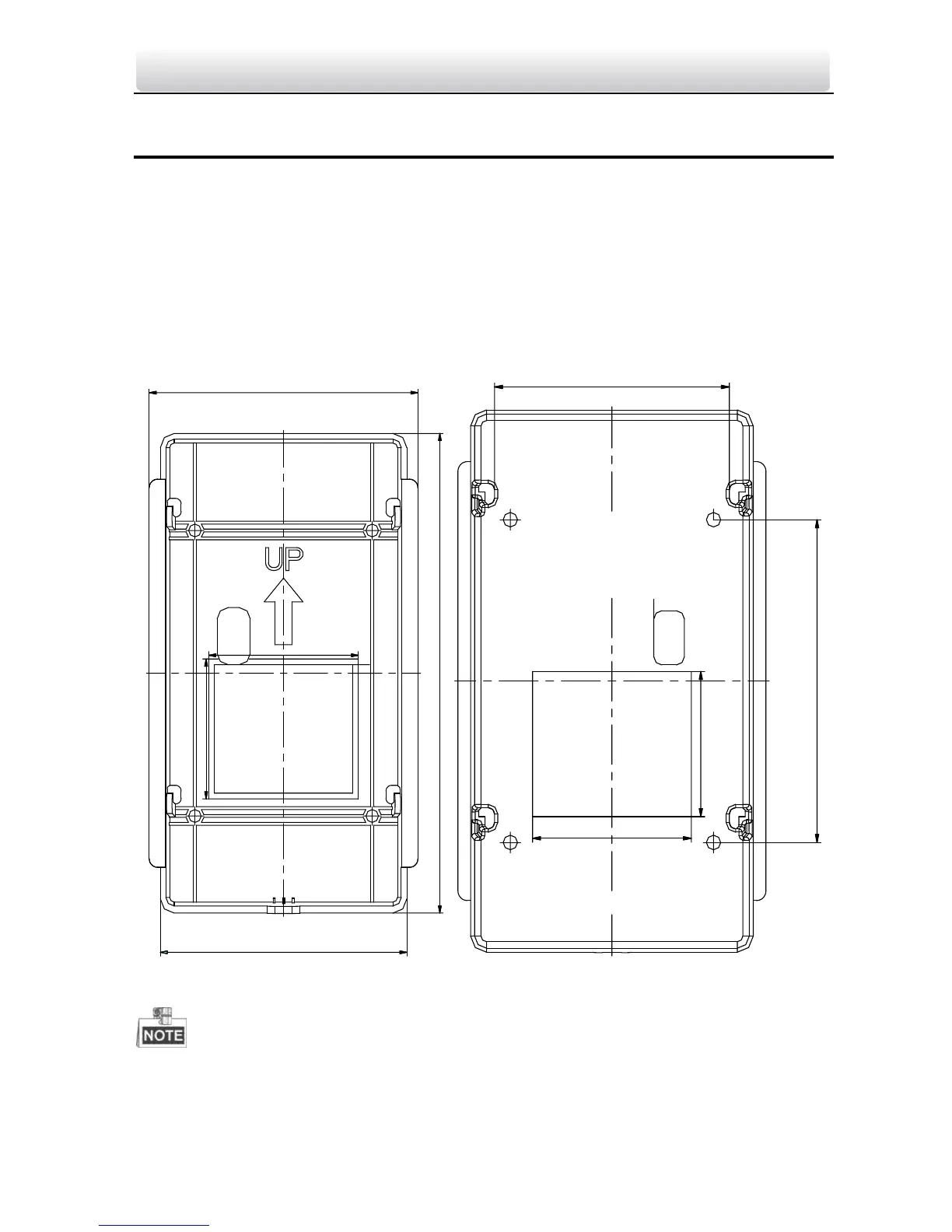

Figure 5-1 Front View & Rear View
 The dimension of gang box for model DS-KV8102-1A/ DS-KV8202-1A/ DS-KV8402-1A
door station is: 89 (width) × 168 (length) ×38 (depth) mm.
