Video Intercom Door Station·User Manual
10
20
69
18
41.48
9.3
72.7
Hollow Area
91.6

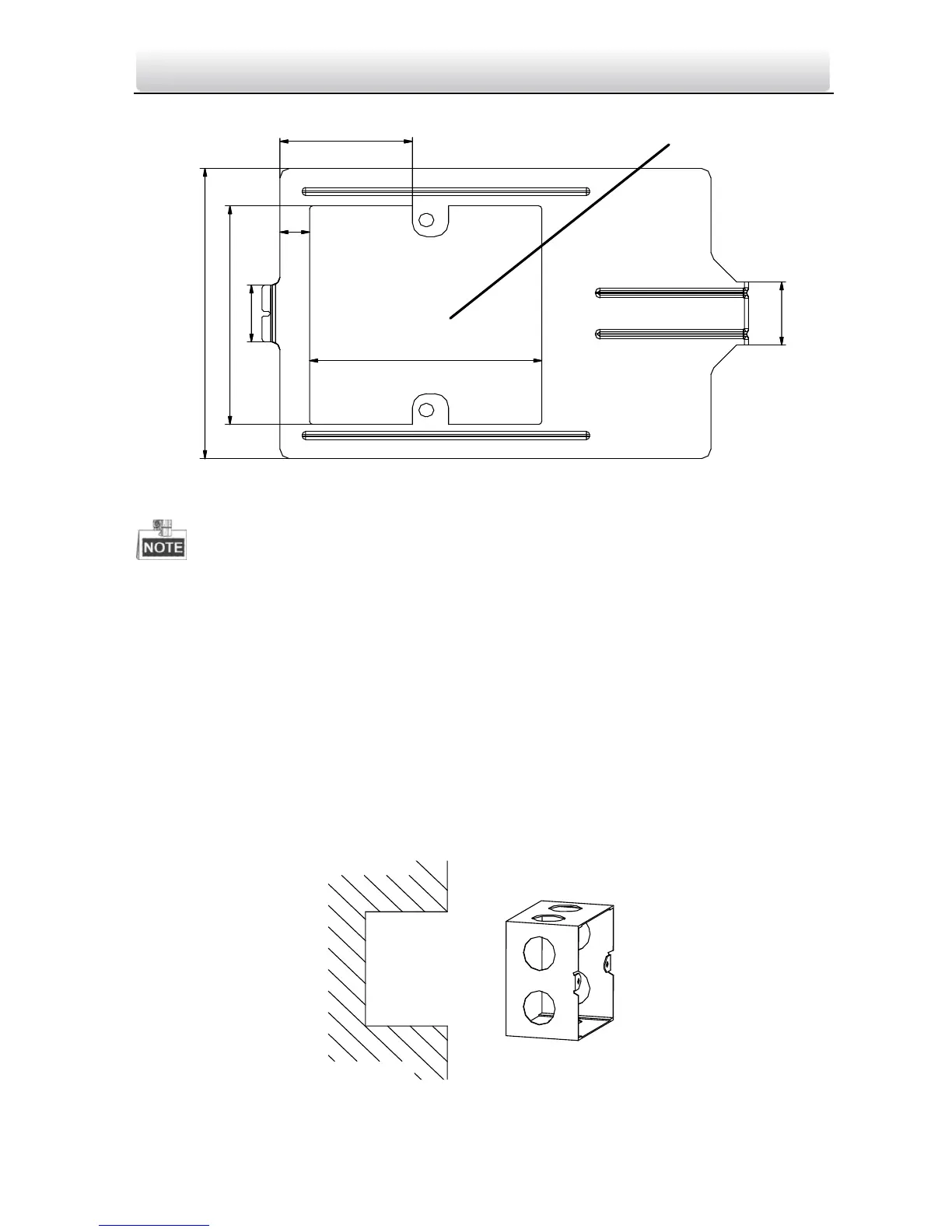

Figure 5-5 Dimensions of Installation Plate
 The dimension of gang box for model DS-KV8102-1C/ DS-KV8102-2C door station is:
75 (width) × 75 (length) × 50 (depth) mm.
 The dimensions above are theoretical. The actual size can be slightly different from
the theoretical dimension.
5.2.2 Wall Mounting with Gang Box of DS-KV8102-XC Model
Steps:
1. Take the gang box, installation plate and screws from the packing box.
2. Chisel a hole in the wall for inserting the gang box. The size of the hole should be 76
(width) × 76 (length) × 50 (depth) mm.
3. Insert the gang box into the hole, as shown in the figure below.
Figure 5-6 Insert the Gang Box
