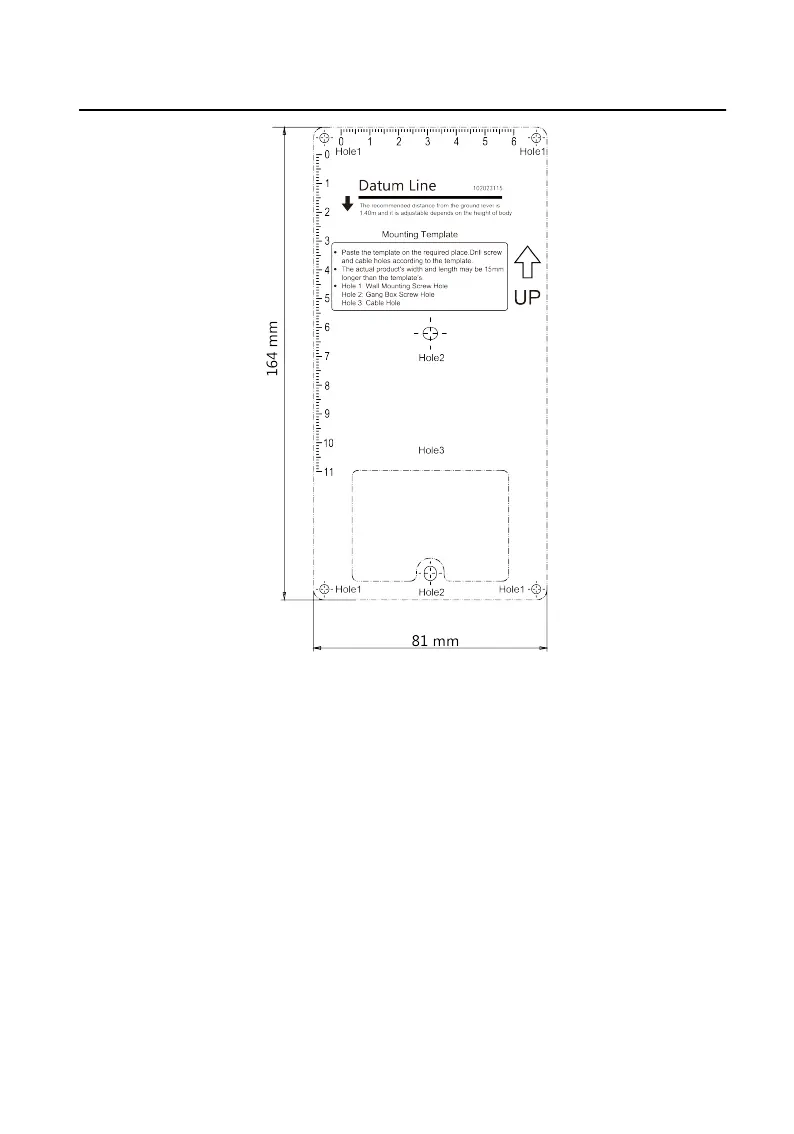

Figure 3-4 Mounng Template
2.
Secure the mounng plate on the wall with 4 supplied screws according to the
screw holes.
3.
Secure the device on the
mounng plate with 4 supplied set screws.
4.
Fix the cover onto the device with the screw.
Video Intercom Villa Door
Staon User Manual
14
