HIKVISION DS-KV8213 - Flush Mounting Without Protective Shield

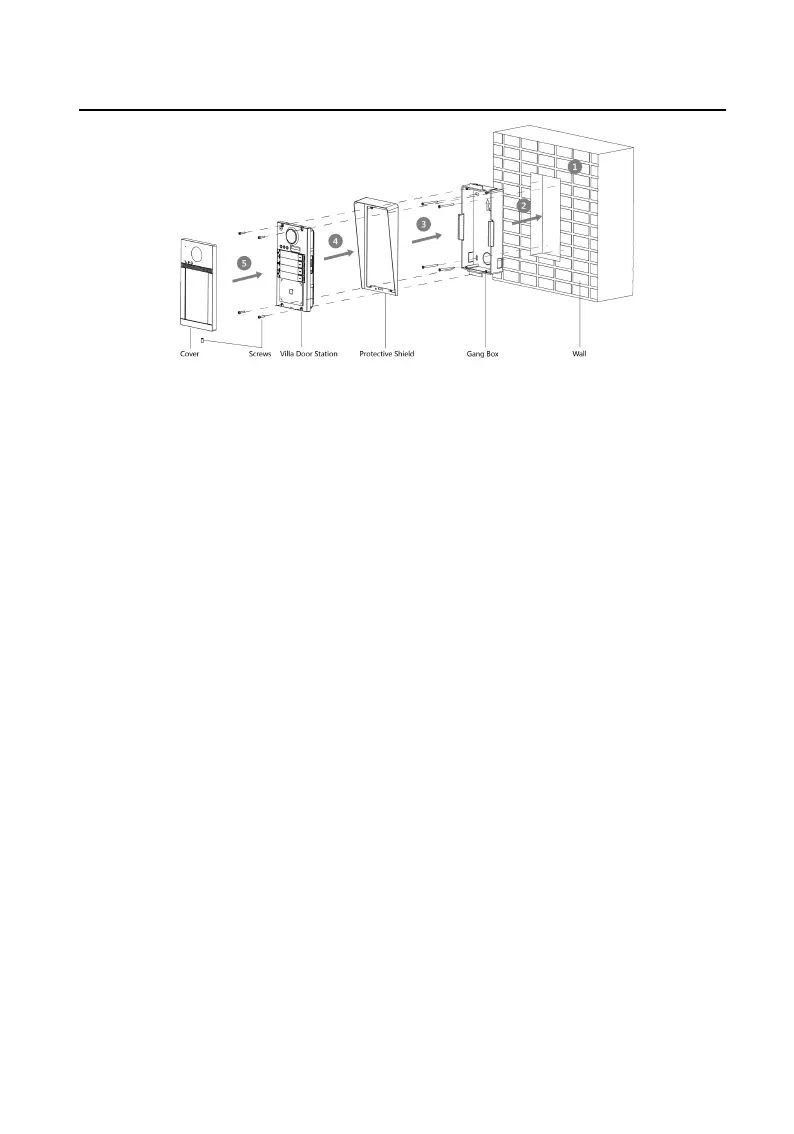

Figure 3-7 Flush Mounng with Protecve Shield
3.5 Flush Mounng without Protecve Shield
Before You Start
Tools that you need to prepare for
installaon: Drill (ø2.846) and gradienter.
Steps
1.
Sck the mounng template on the wall. Drill the hole according to the
mounng template. Remove the template from the wall.
Video Intercom Villa Door
Staon User Manual
17
