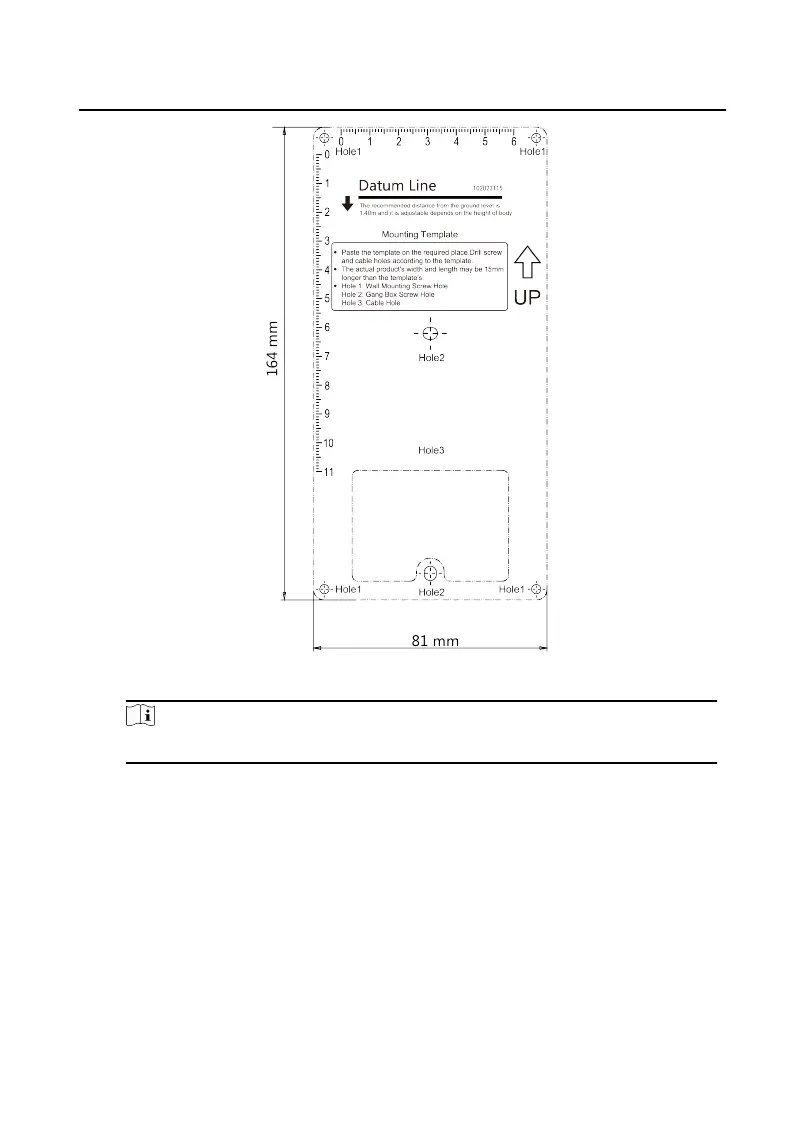

Figure 3-8 Mounng Template
Note
The suggested size of hole is 175 mm × 84 mm × 19 mm.
2.
Secure the gang box into the hole with 4 screws.
3.
Insert the device to the gang box. Secure the device with 4 supplied screws.
4.
Fix the cover onto the device with the screw.
Video Intercom Villa Door
Staon User Manual
18
