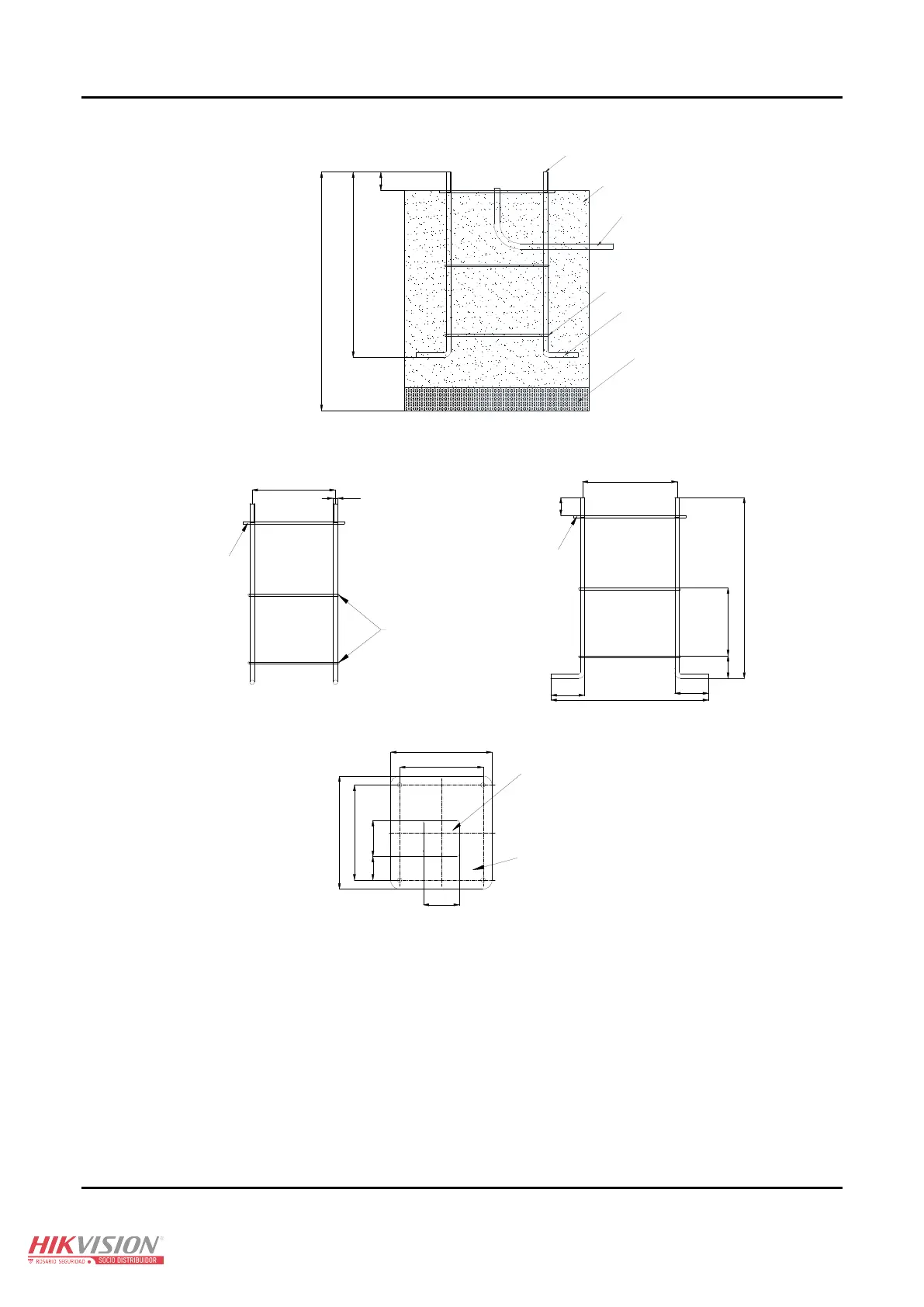

Pole Panic Alarm Station Grounding Cage Dimension(without Speed Dome Bracket)
800 mm
1030 mm
80 mm
4 – M20
C25 Concrete
Conduit Diameter
≥30mm
Reinforced Rebar
Foundation Bolt
Rubble
370mm
20mm
Basement
Weld ⌀8Rebar with
Foundation Bolt
800 mm
100 300 mm
Basement
420mm
80 mm
700 mm
150 mm
150 mm
Route the conduit through the
square area
Conduit Diameter ≥30mm
Basement
Dimension
160 mm
450 mm
370 mm
500 mm
420 mm
104
160 mm
Pole Panic Alarm Station Grounding Cage Dimension(without Speed Dome Bracket) Figure 2-12
