Pole Panic Alarm Station Grounding Cage Dimension(with Speed Dome Bracket)
4-M20
1380 mm
1200 mm
80 mm
150 mm
370 mm
M20
450 mm
370 mm
160 mm
500 mm
420 mm
160 mm
104
1200 mm
300 mm300 mm
100
150 mm
420 mm
80 mm
700 mm
C25 Concrete
Conduit Diameter
≥30mm
Reinforced Rebar
Foundation Bolt
Rubble
Weld ⌀8Rebar with
Foundation Bolt
Basement
Basement
Route the conduit through the
square area
Conduit Diameter ≥30mm
Basement
Dimension

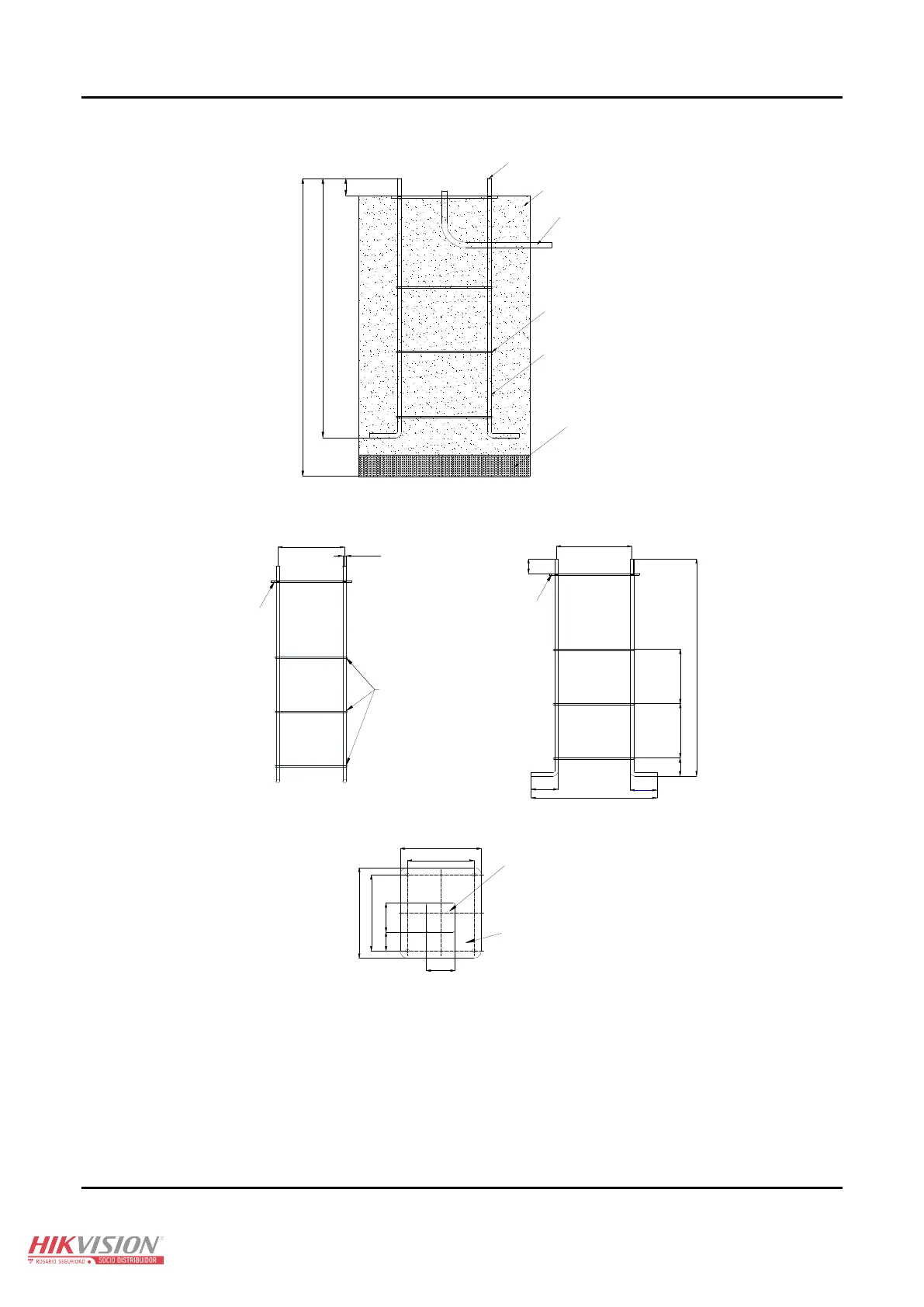

Pole Panic Alarm Station Grounding Cage Dimension(with Speed Dome Bracket) Figure 2-13
