HIKVISION DS-PEA1-21 User Manual

Panic Alarm Station User Manual
34

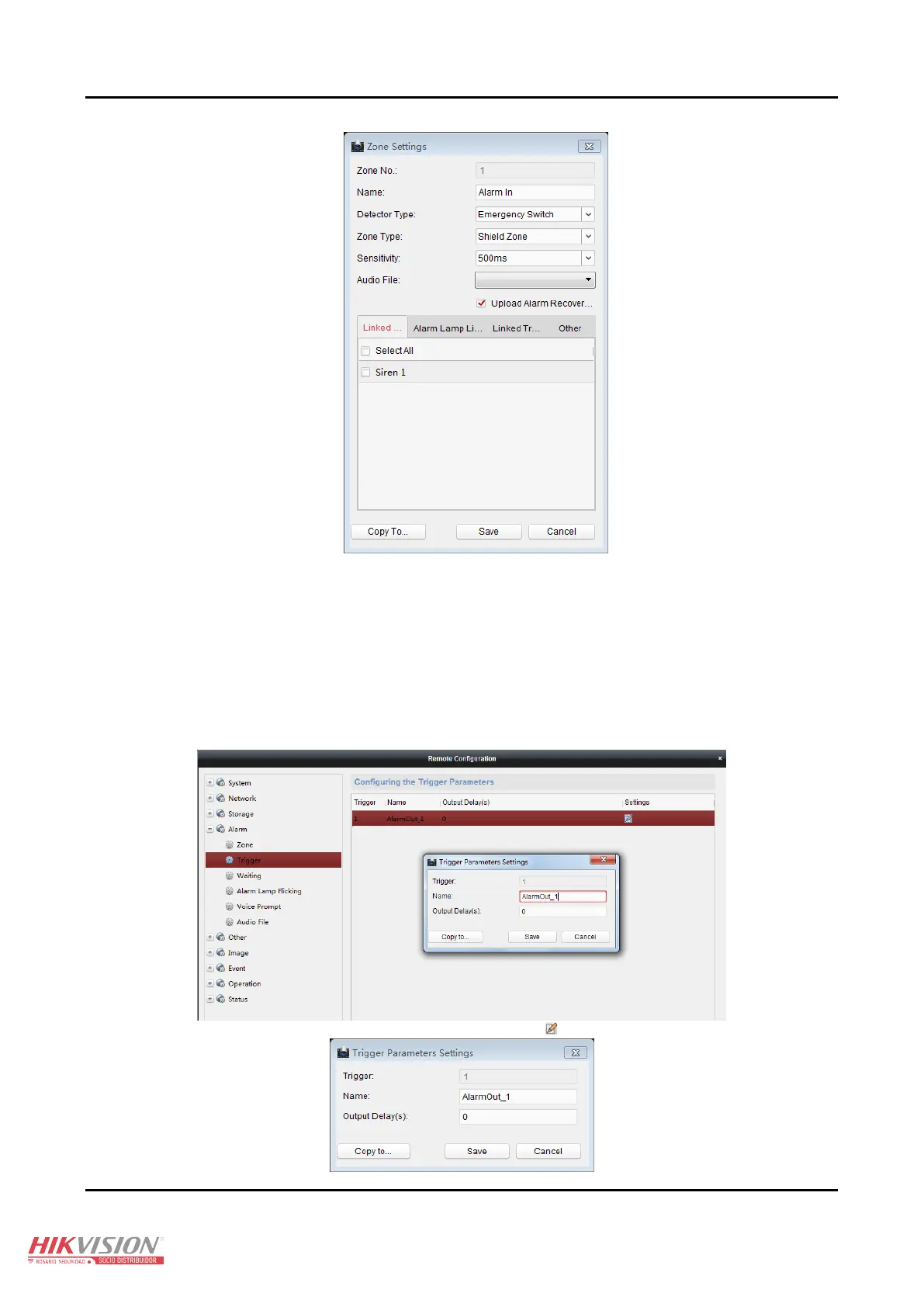

3. Edit the general information of the Zone, including name, detector type, zone type, sensitivity and so on.
Detector Type: Select the type of the detector.
Zone Type: Select the type of Zone in the partition.
Sensitivity: Select the response time of the Zone.
4. Select the linked siren and linked trigger.
5. Click Copy to to copy all these settings to other Zones.
6. Click Save to save the settings.
Trigger Settings
Steps:
1. Click Remote Configuration > Alarm > Trigger to enter the trigger configuration interface.
2. In the Alarm Output list, select the alarm output channel and click the icon to enter trigger parameters setting interface.

HIKVISION DS-PEA1-21 Specifications

General

Brand	HIKVISION
Model	DS-PEA1-21
Category	Security System
Language	English
