HIKVISION DS-PHA64-LP User Manual

31
7. Click OK.

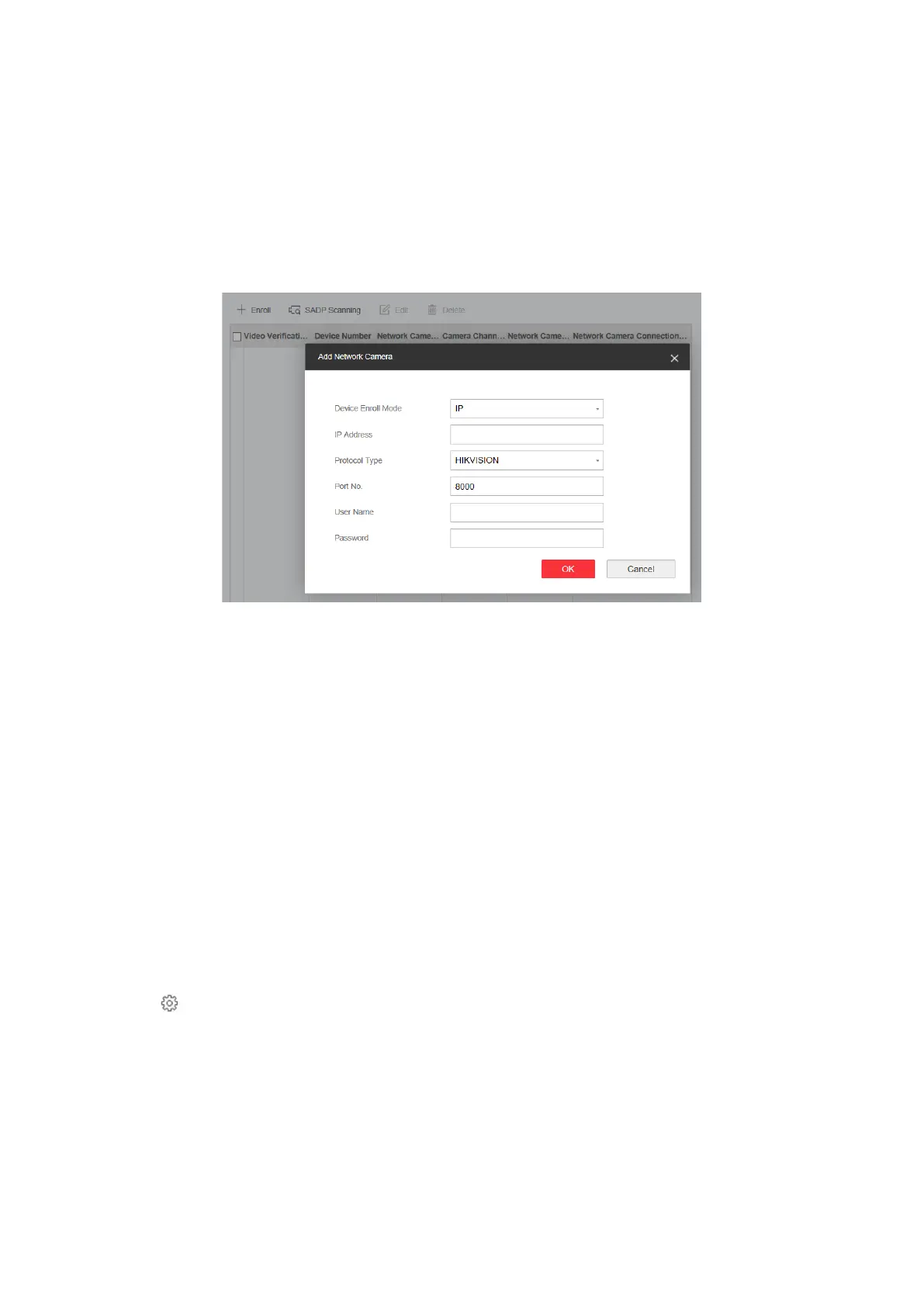

Network Camera
You can add network cameras in the system.
Steps
1. Click Device → Network Camera to enter the network camera management page.
2. Click Enroll, and enter the basic information of the camera, such as IP address and port No., and
select the protocol type.
3. Enter the user name and password of the camera.
SADP Scanning
Scan all network cameras in the same LAN. A list will pop up after scanning. You can directly
check to add cameras in the list.
4. Click OK.
5. Optional: Click Edit or Delete to edit or delete the selected camera.
Module
Set module parameters.
Steps
1. Click Device → Module to enter the page.
2. Click edit the parameters.
3. Select linked areas.
4. Optional: Enable AUX according to your needs. It will enable the auxiliary power output of the
module. (Only for input expanders and output expanders.)
5. Click OK.

HIKVISION DS-PHA64-LP Specifications

General

Wi-Fi	Yes
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of alarm zones	64
Connectivity technology	Wired & Wireless
Operating temperature (T-T)	-10 - 40 °C
Number of simultaneous users	62 user(s)
Operating relative humidity (H-H)	10 - 90 %
Number of simultaneously connected devices (max)	-
Batteries included	No
Number of door/window sensors	- pc(s)
Mounting type	Wall
Product color	White
Housing material	Plastic
Battery life	36 h
Alarm current	2000 mA
Input voltage	100 - 240 V
Battery voltage	12 V
Battery capacity	7000 mAh

Weight and Dimensions

Alarm control panel weight	997 g
Alarm control panel dimensions (W x D x H)	261 x 86.4 x 199 mm
