HIKVISION DS-PHA64-LP User Manual

53

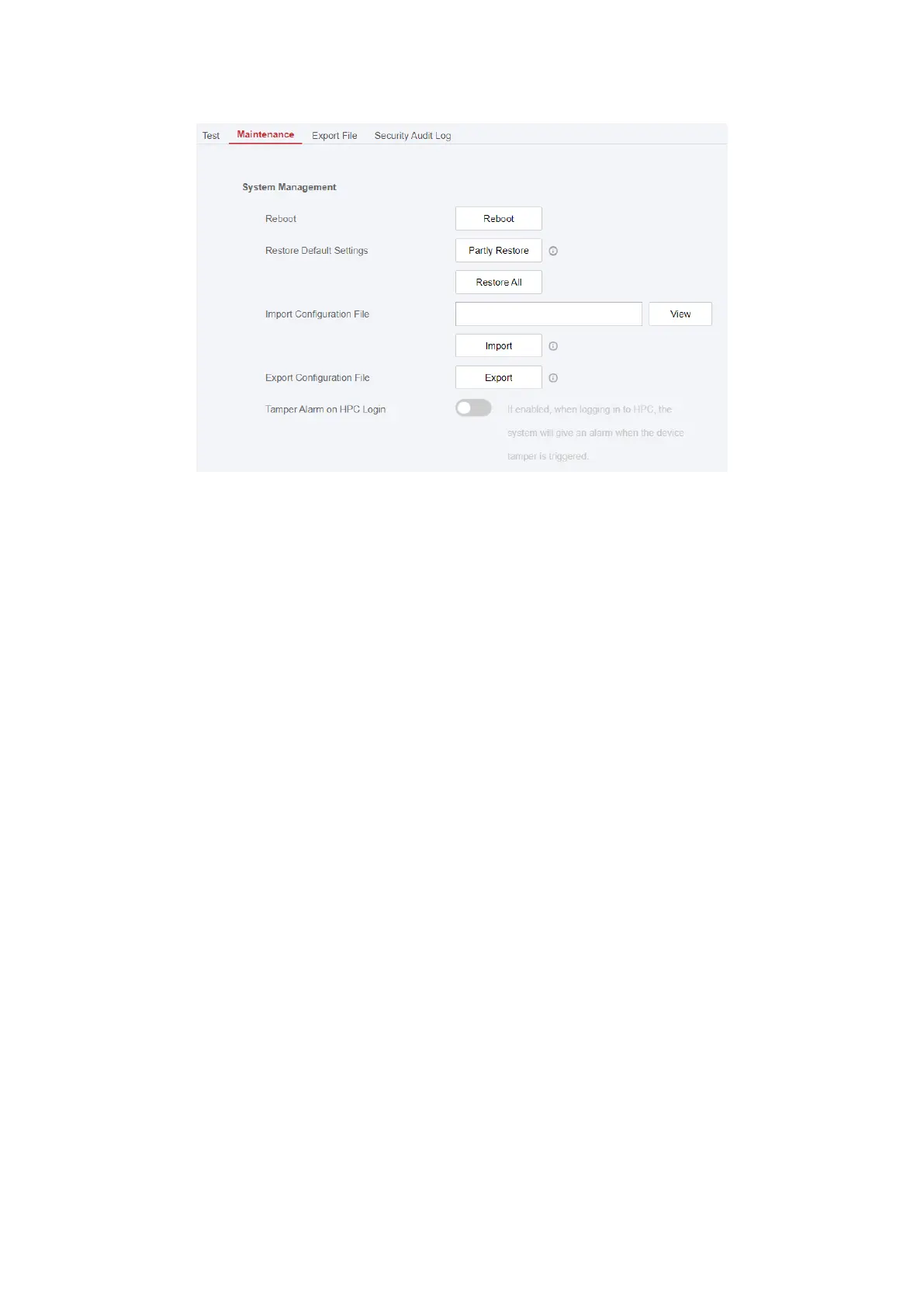

Reboot
Click Reboot to reboot the device.
Restore Default Settings
Click Partly Restore to restore all parameters except for admin user information, wired
network, Wi-Fi network, detector information, and peripheral information to default ones.
Click Restore All to restore all parameters to the factory settings.
Import Configuration File
Click View to select configuration file from the PC and click Import Configuration File to import
configuration parameters to the device. Importing configuration file requires entering the
password set at the time of exporting.
Export Configuration File
Click Export Configuration File to export the device configuration parameters to the PC.
Exporting configuration file requires a password to be used for file encryption.
Tamper Alarm on HPC Login
After this function is enabled, the device lid opened alarm (tamper alarm) takes effect when
installer login. (By default, the lid opened alarm (tamper alarm) does not take effect when the
installer login.)
Export File
You can export debugging file to the PC.
Steps
1. Click Maintenance → Device Maintenance → Export File to enter the page.

HIKVISION DS-PHA64-LP Specifications

General

Wi-Fi	Yes
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of alarm zones	64
Connectivity technology	Wired & Wireless
Operating temperature (T-T)	-10 - 40 °C
Number of simultaneous users	62 user(s)
Operating relative humidity (H-H)	10 - 90 %
Number of simultaneously connected devices (max)	-
Batteries included	No
Number of door/window sensors	- pc(s)
Mounting type	Wall
Product color	White
Housing material	Plastic
Battery life	36 h
Alarm current	2000 mA
Input voltage	100 - 240 V
Battery voltage	12 V
Battery capacity	7000 mAh

Weight and Dimensions

Alarm control panel weight	997 g
Alarm control panel dimensions (W x D x H)	261 x 86.4 x 199 mm
