HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
108
Chapter 7 Backup
7.1 Backing up Record Files
Before you start
Please insert the backup device(s) into the device.
7.1.1 Backing up by Normal Video/Picture Search
Purpose
The record files or pictures can be backed up to various devices, such as USB devices (USB flash
drives, USB HDDs, USB writer), SATA writer and e-SATA HDD.
Backup using USB flash drives and USB HDDs
Step 1 Go to Menu > Export > Normal/Picture.
Step 2 Select the cameras to search.
Step 3 Set search condition and click Search button to enter the search result interface.

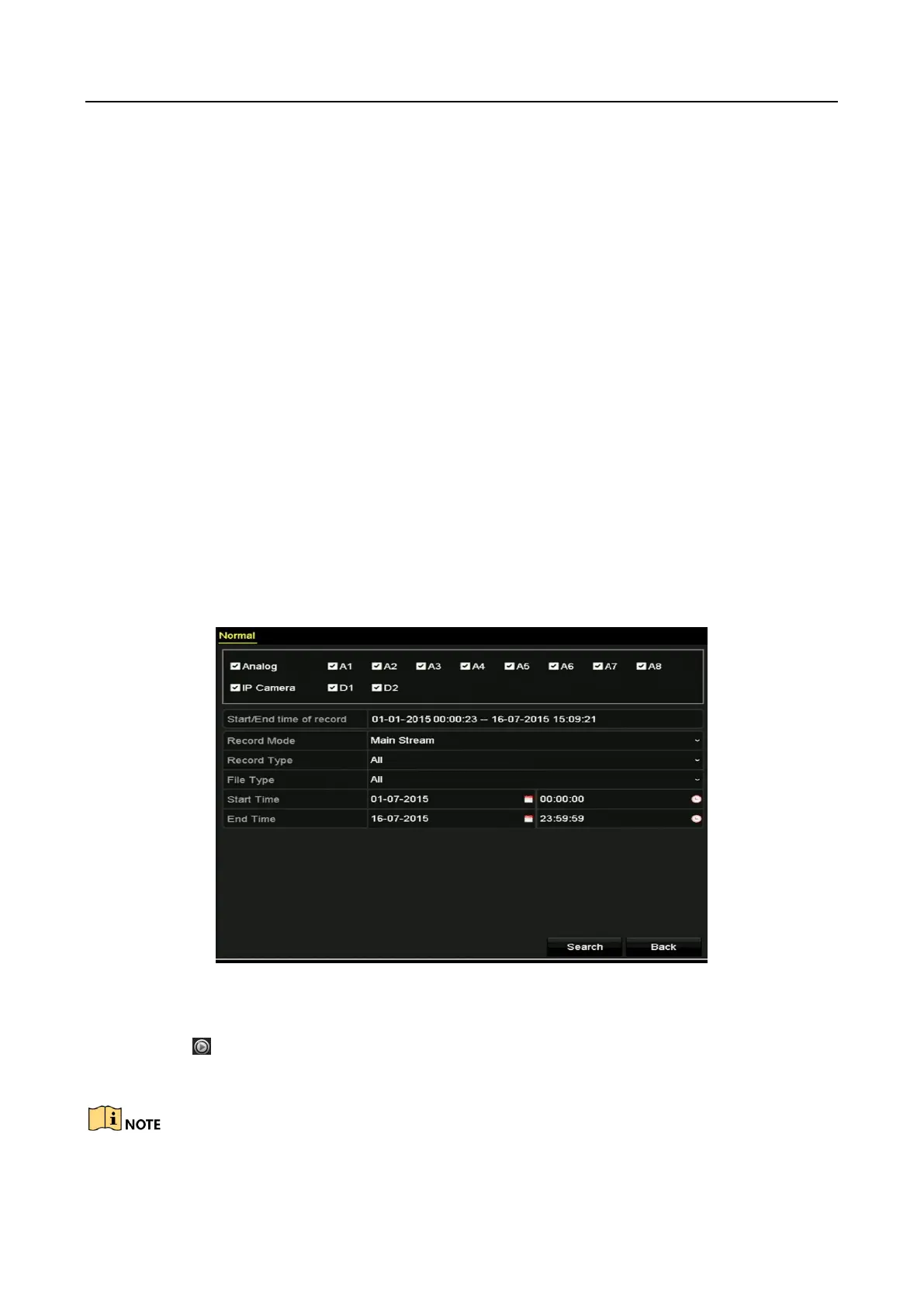

Figure 7-1 Normal Video Search for Backup
Step 4 The matched video files are displayed in Chart or List display mode.
Click to play the record file if you want to check it.
Check the checkbox before the video files you want to back up.

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
