HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
121

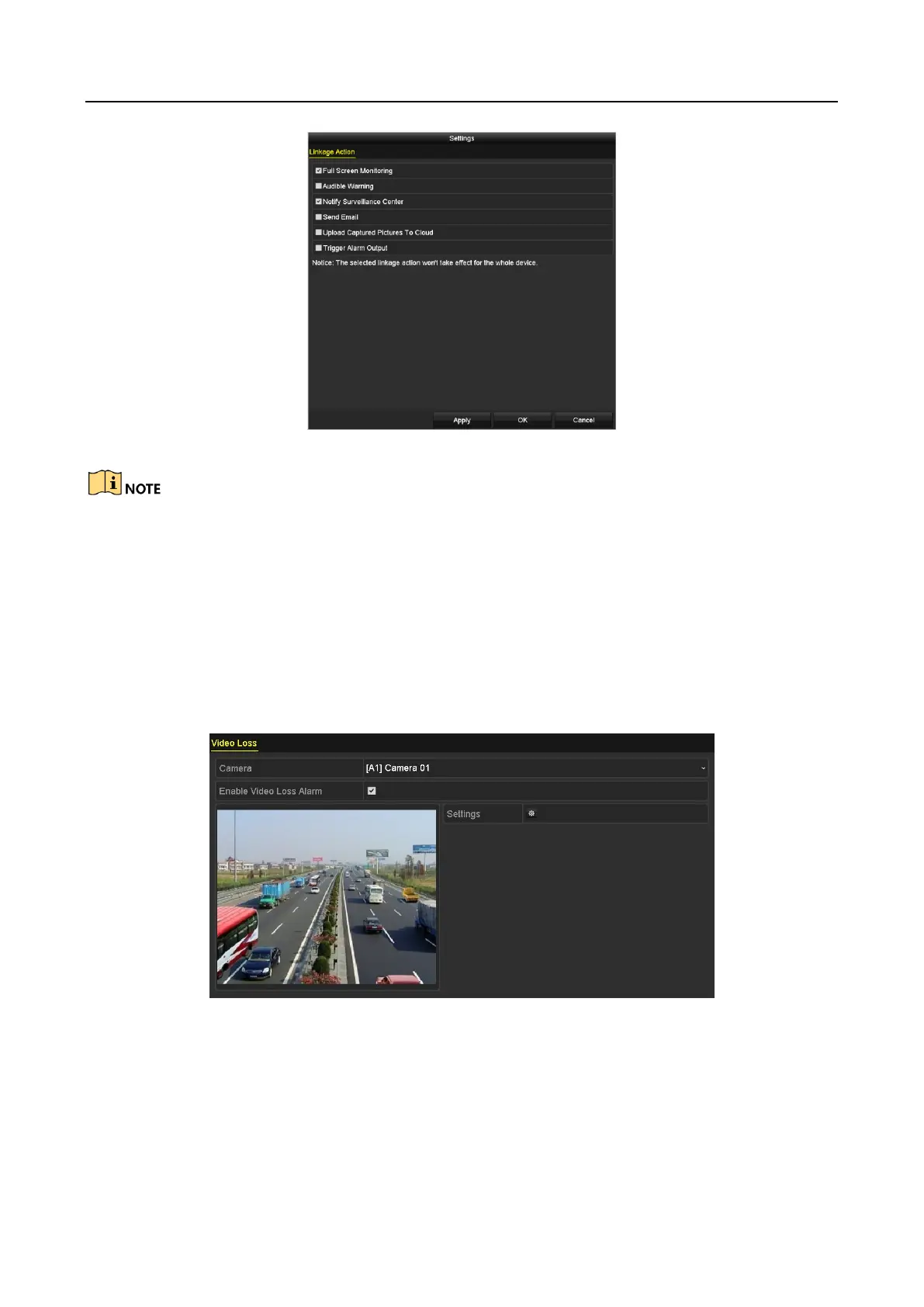

Figure 8-11 Disarm Linkage Actions
When the alarm input 1 (Local<-1) is enabled with one-key disarming, the other alarm input
settings are not configurable.
8.4 Detecting Video Loss
Purpose
Detect video loss of a channel and take alarm response action(s).
Step 1 Go to Menu > Camera > Video Loss.
Figure 8-12 Video Loss Setup Interface
Step 2 Select a Camera you want to detect.
Step 3 Set up handling method of video loss.
Check the checkbox of Enable Video Loss Alarm.

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
