HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
126
PoC Module Exception: The DVR cannot detect the PoC module or the PoC module is
powered off abnormally.
Step 1 Go to Menu > Configuration > Exceptions.

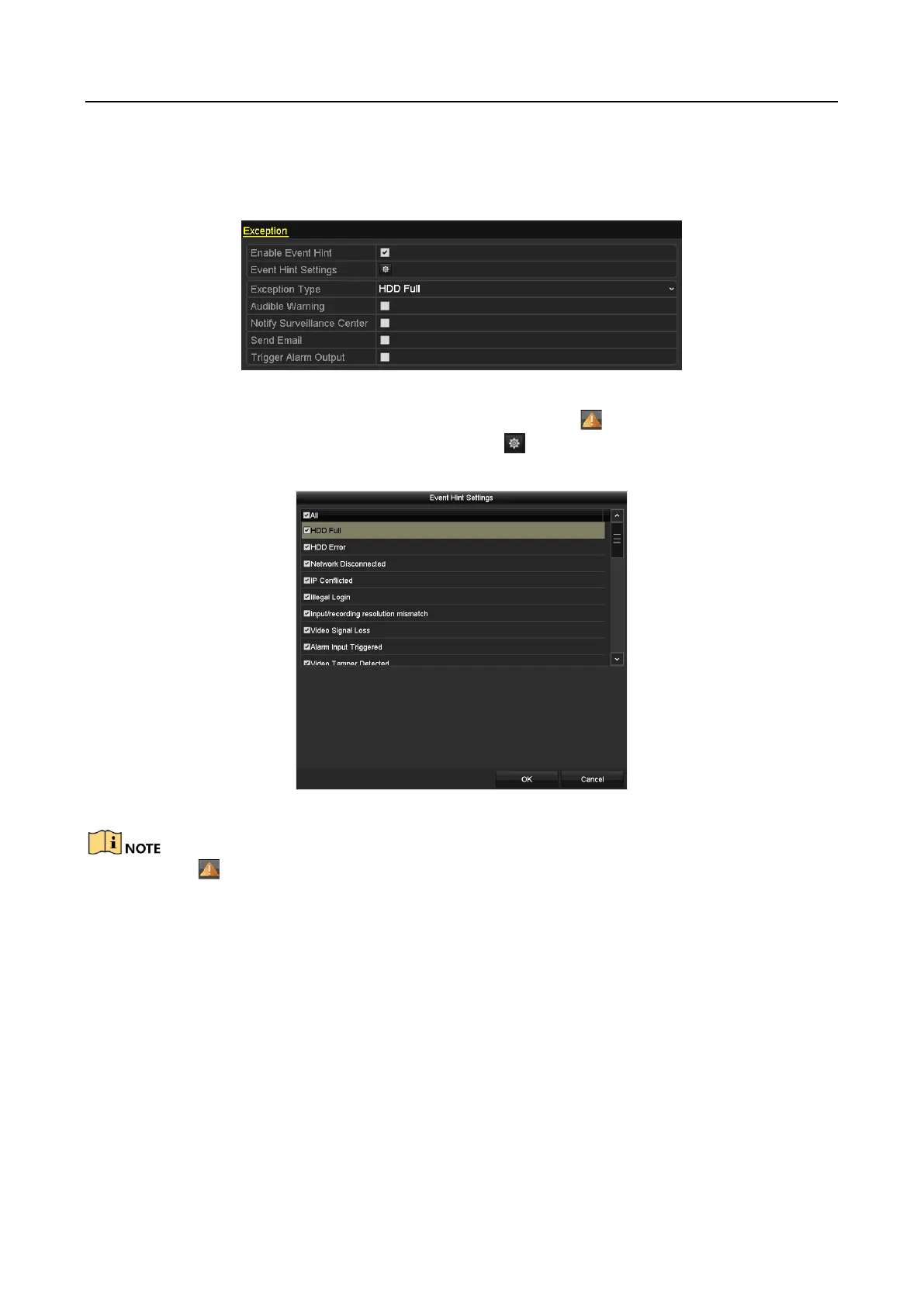

Figure 8-18 Exception Settings Interface
Step 2 Check the checkbox of Enable Event Hint to display the (Event/Exception icon) when
an exceptional event occurs. And click the icon to select the detailed event hint for
display.
Figure 8-19 Event Hint Settings
Click the icon appears in the live view interface, and you can view the detailed information of the
exceptional event. Click the button Set, and then you can select the detailed event hint for display.

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
