HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
189

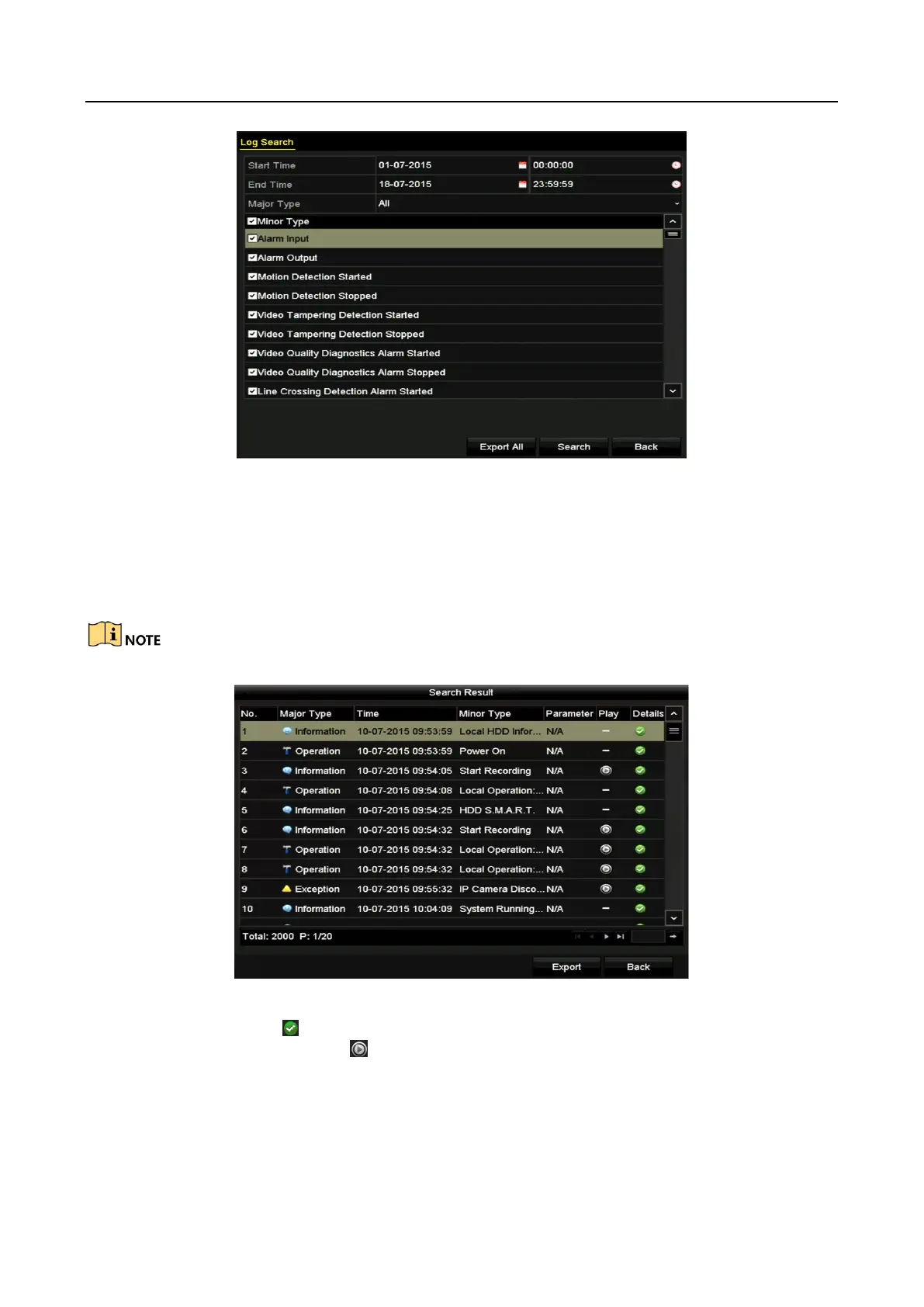

Figure 14-2 Log Search Interface
Step 2 Set the log search conditions to refine your search, including the Start Time, End Time,
Major Type and Minor Type.
Step 3 Click the Search button to start search log files.
Step 4 The matched log files will be displayed on the list shown below.
Up to 2000 log files can be displayed each time.
Figure 14-3 Log Search Results
Step 5 You can click the button of each log or double-click it to view its detailed information.
And you can also click the button to view the related video files if available.

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
