HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
22

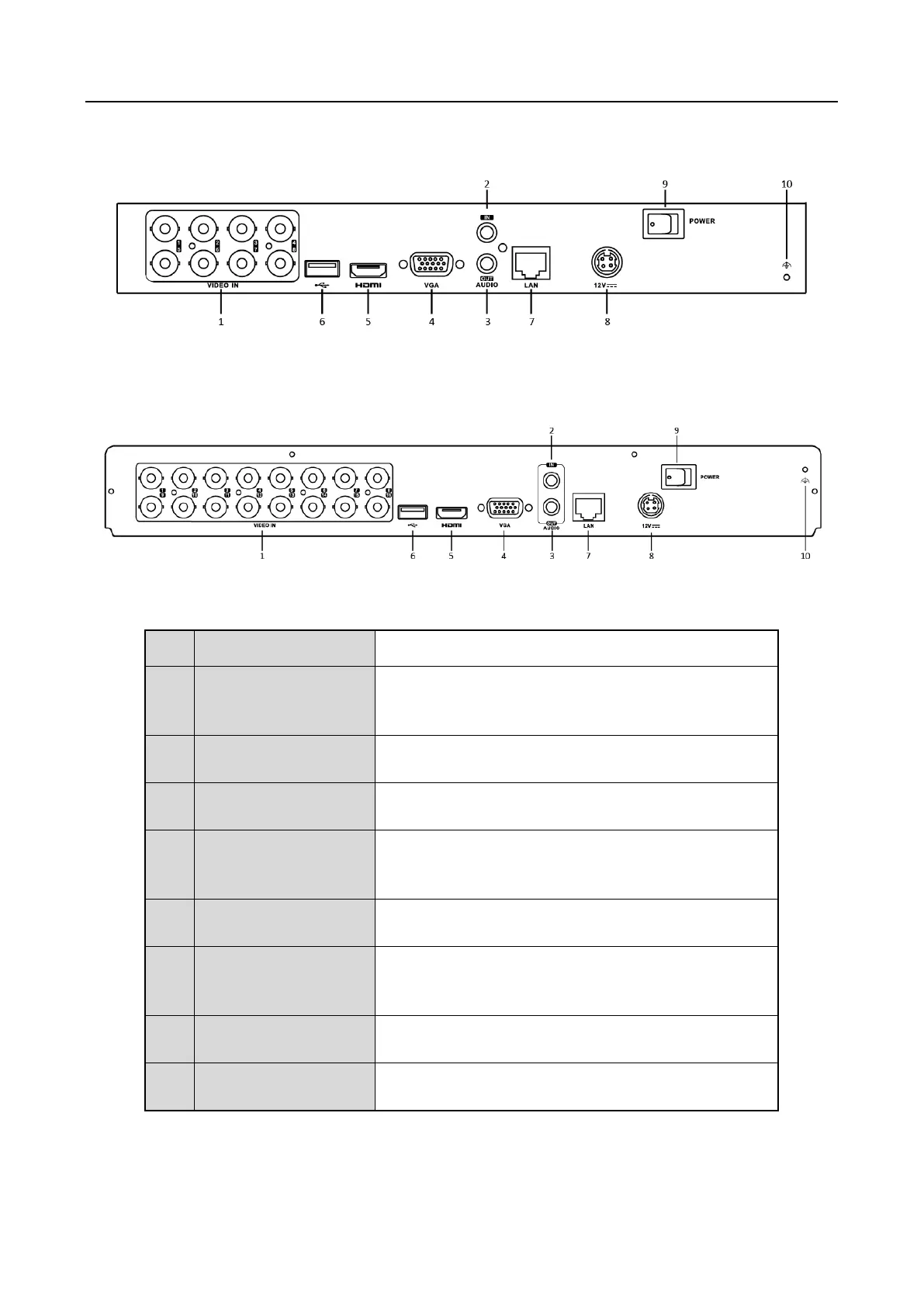

Rear Panel 2:
Figure 1-5 HWD-7100MH and HWD-7200MH Rear Panel
Rear Panel 3
Figure 1-6 Rear Panel of HWD-6200MH-G2 (with 16 Video Inputs)
Table 1-5 Description of Rear Panel 1-8
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video
input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector.
4
VGA
DB15 connector for VGA output. Display local
video output and menu.
5
HDMI
HDMI video output connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network
8
Power Supply
48 VDC or 12 VDC.

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
