HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
50

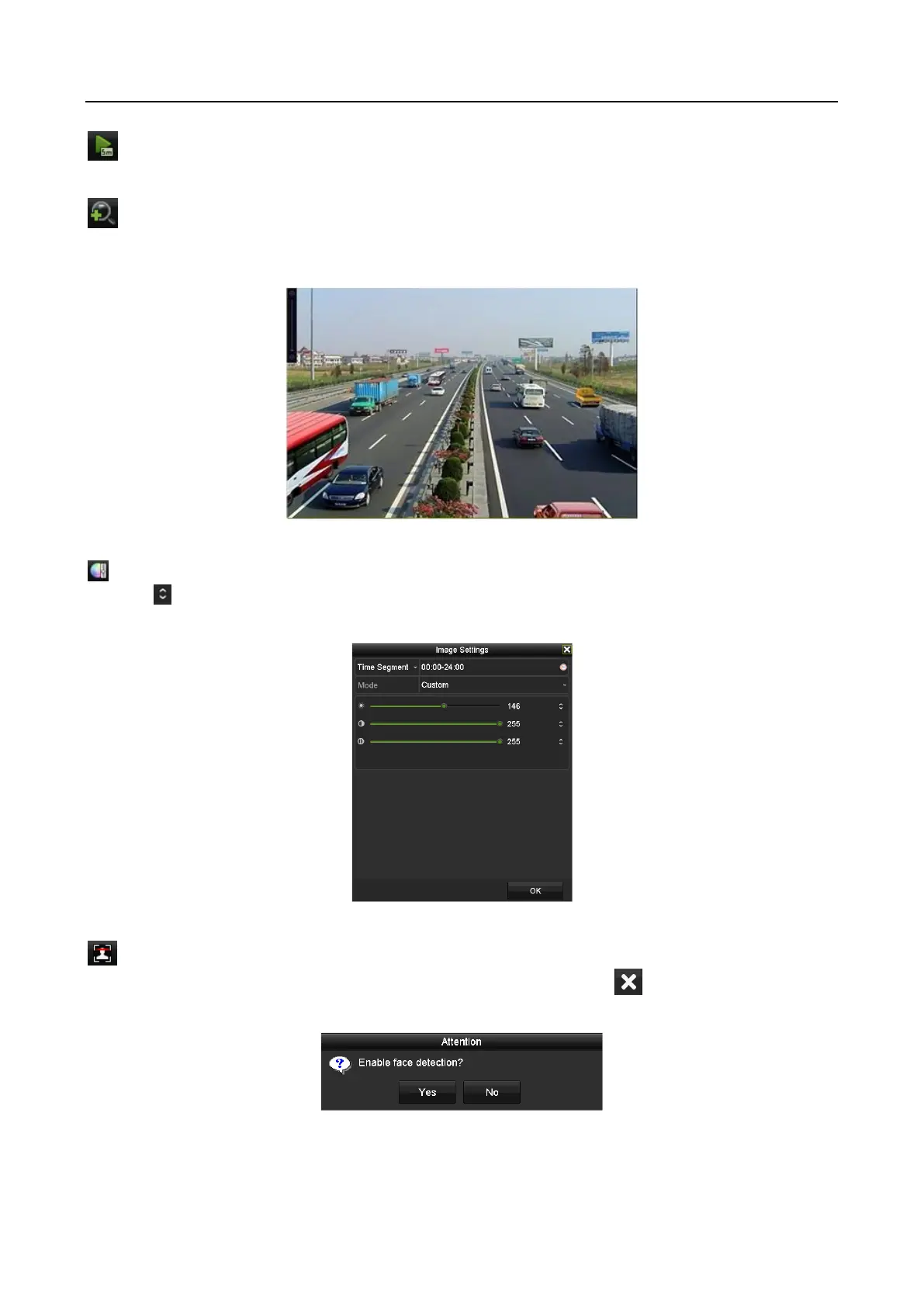

Instant Playback only shows the record in last five minutes. If no record is found, it means
there is no record during the last five minutes.
Digital Zoom is for zooming in the live image. You can zoom in the image to different
proportions (1 to16X) by moving the sliding bar. You can also scroll the mouse wheel to control the
zoom in/out.
Figure 3-4 Digital Zoom
Image Settings icon can be selected to enter the Image Settings menu. You can drag the mouse
or click to adjust the image parameters, including brightness, contrast, and saturation. Refer to
the Chapter 13.3 Configuring Video Parameters for details.
Figure 3-5 Image Settings
Face Detection can be enabled if you click the icon. The dialog pops up as shown in Figure 3-6. Click
Yes and the full-screen live view of the channel is enabled. You can click to exit from the full-screen
mode.
Figure 3-6 Enable Face Detection

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
