HIKVISION HWD Series User Manual

Digital Video Recorder User Manual
74

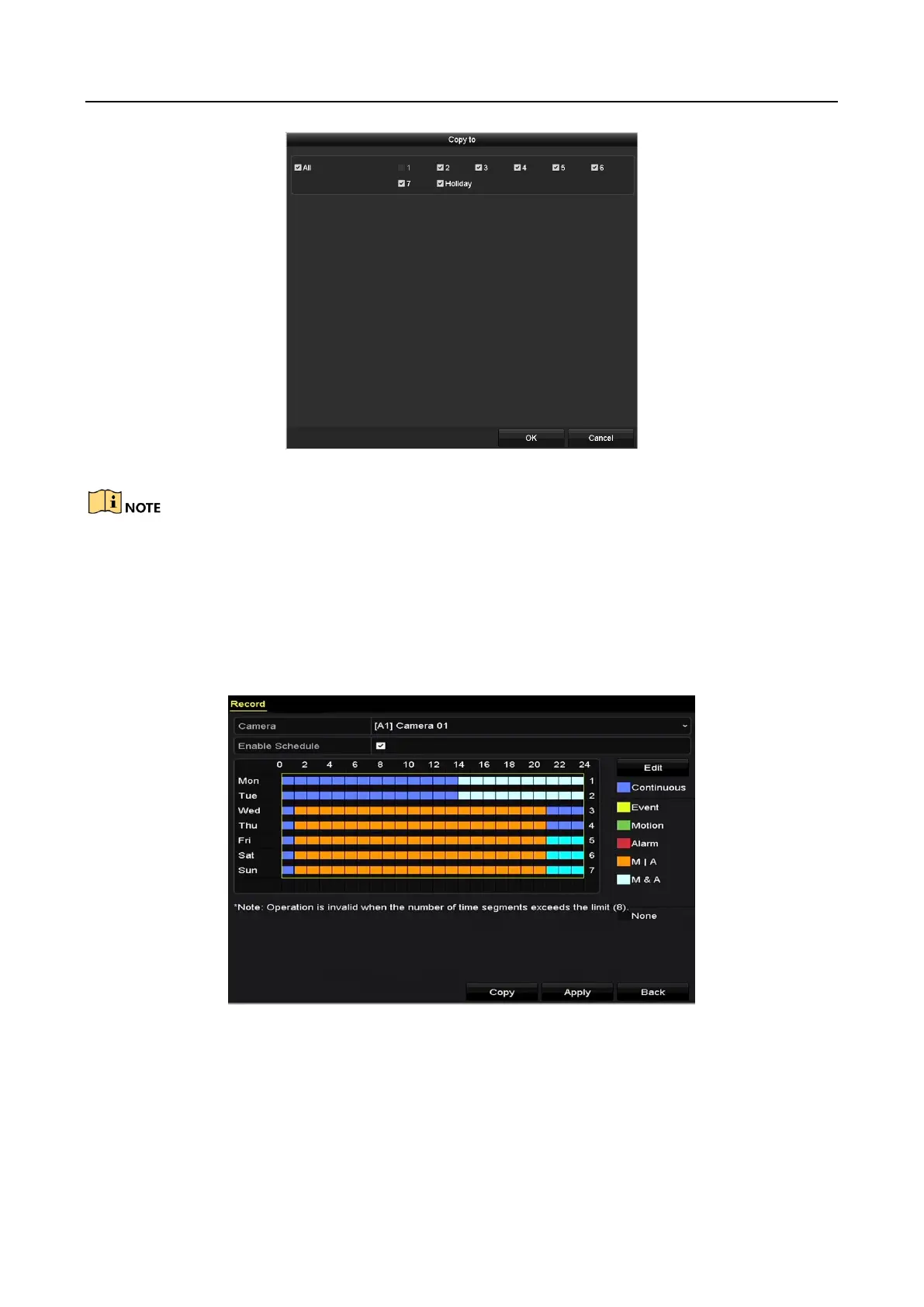

Figure 5-11 Copy Schedule to Other Days
The Holiday option is available when you enable holiday schedule in Holiday settings. See Chapter
5.7 Configuring Holiday Record.
6) Click OK to save the settings and return to upper level menu.
Draw the schedule
1) Click the color icon to select a record type in the event list on the right-side of the
interface.
Figure 5-12 Draw the Recording Schedule

HIKVISION HWD Series Specifications

General

Operating System	Embedded Linux
Video Compression	H.264, H.265
Video Input	4/8/16 channels
Video Output	1 HDMI, 1 VGA
Audio Output	1 channel
Network Interface	1 RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface	2 USB 2.0
HDD Interface	SATA
Power Supply	12 VDC
Mobile Access	Hik-Connect
Encoding Resolution	1080p, 720p, VGA, WD1, 4CIF, CIF
