User Manual of Network Video Recorder
177

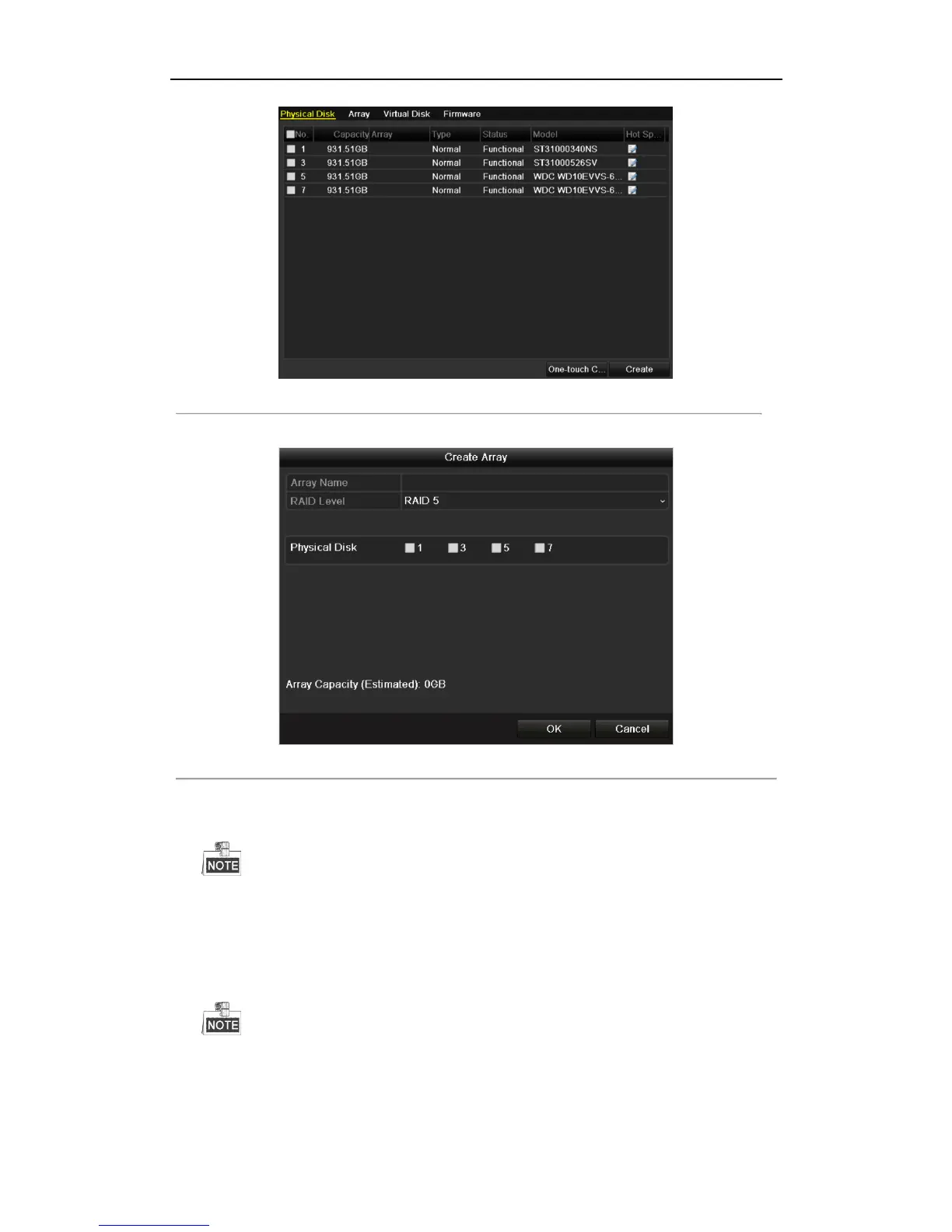

Figure 10. 6 Physical Disk Settings Interface
2. Click Creat button to enter the Create Array interface.
Figure 10. 7 Create Array Interface
3. Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5 or RAID 10; select the Physical
Disk that you want to configure array.
 If you choose RAID 0, at least 2 HDDs must be installed.
 If you choose RAID 1, 2 HDDs need to be configured for RAID 1.
 If you choose RAID 5, at least 3 HDDs must be installed.
 If you choose RAID 10, 4/6/8 HDDs need to be configured for RAID 10.
4. Click OK button to create array.
If the number of HDDs you select is not compatible with the requirement of the RAID level, the error
message box will pop up.
