HIKVISION Network Video Recorder User Manual

User Manual of Network Video Recorder
193
Steps:
1. Enter the Physical Disk Settings interface.
Menu > HDD > RAID > Physical Disk

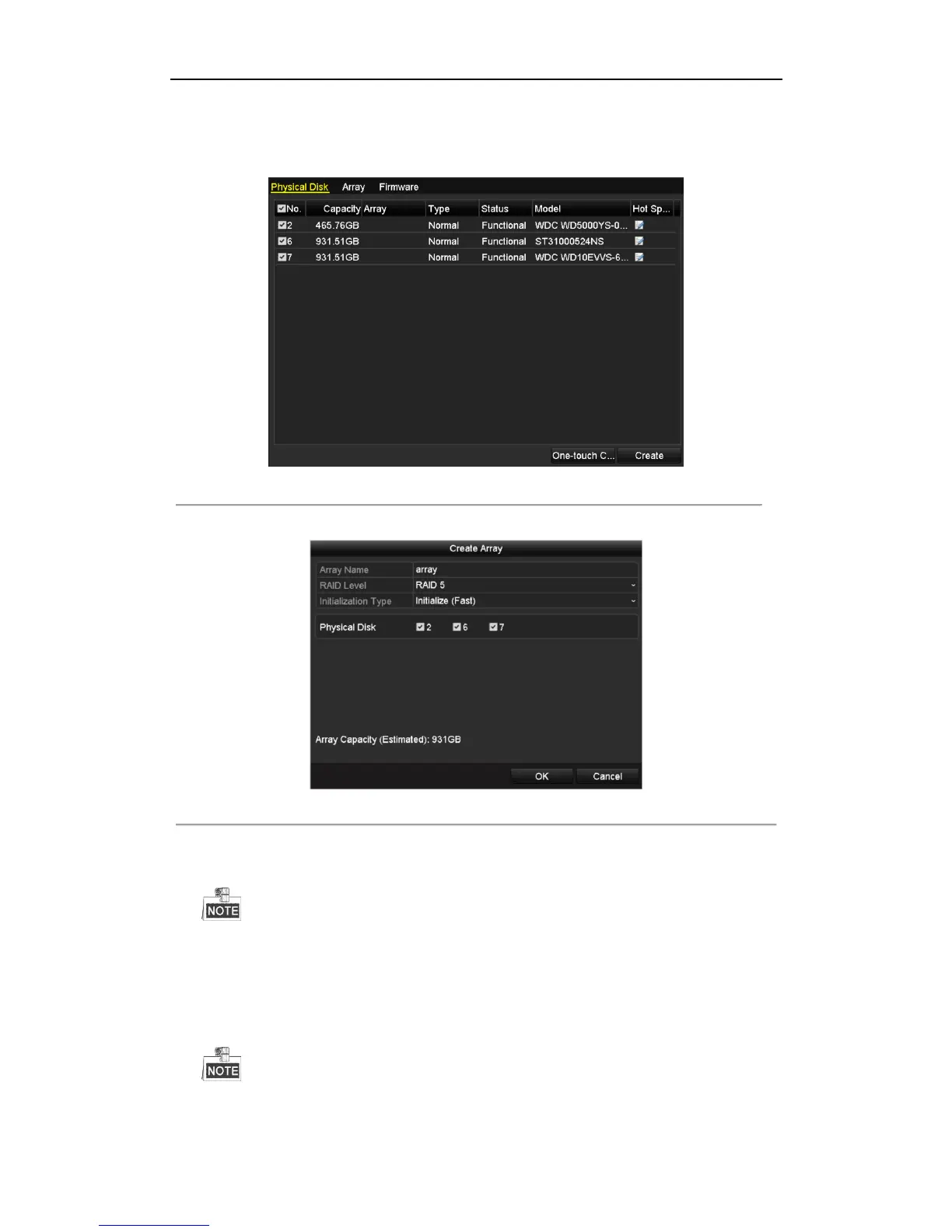

Figure 11. 7 Physical Disk Settings Interface
2. Click Creat button to enter the Create Array interface.
Figure 11. 8 Create Array Interface
3. Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5 or RAID 10; select the Physical
Disk that you want to configure array.
 If you choose RAID 0, at least 2 HDDs must be installed.
 If you choose RAID 1, 2 HDDs need to be configured for RAID 1.
 If you choose RAID 5, at least 3 HDDs must be installed.
 If you choose RAID 10, the number of HDDs installed should be even in the range of 4~16.
4. Click OK button to create array.
If the number of HDDs you select is not compatible with the requirement of the RAID level, the error
