HIKVISION Network Video Recorder User Manual

User Manual of Network Video Recorder
34
DS-7700/7600NI-SP

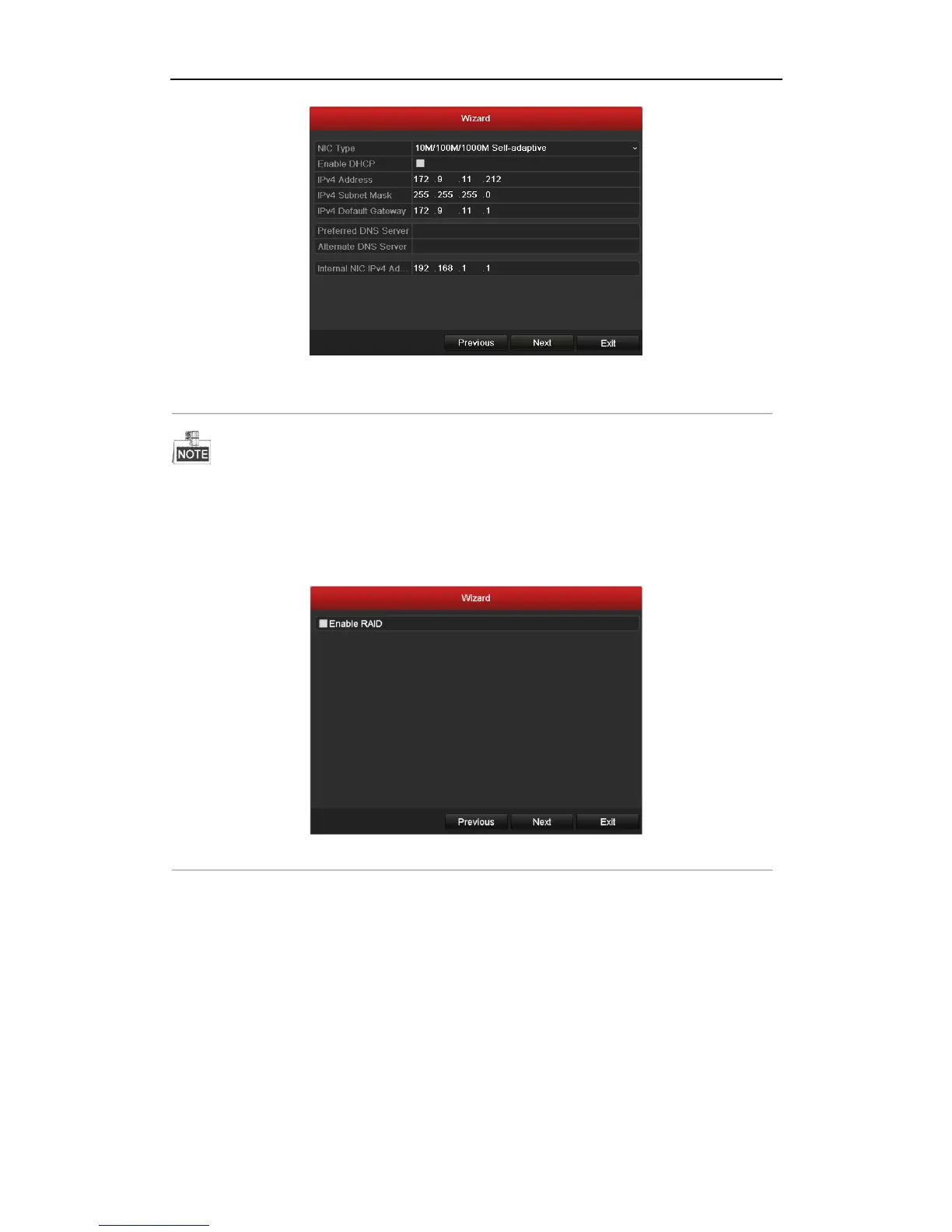

Figure 2. 5 Network Configuration
Dual-NIC is only supported in DS-9600NI-ST/RT/XT and DS-8600NI-ST device. And for
DS-7700/7600NI-SP series NVR, the internal NIC IPv4 address should be configured for the cameras
connecting to the PoE network interface of the NVR.
7. Click Next button after you configured the network parameters, which takes you to the RAID configuration
window (supported by DS-9600NI-XT series only).
Figure 2. 6 Array Management
8. Click Next button to enter the Array Management window (supported by DS-9600NI-RT series, and is also
supported by DS-9600NI-XT if you check the checkbox to enable the RAID function in the previous
window).
