HIKVISION PanoVu Series Quick Start Guide

PanoVu Series Camera·Quick Start Guide
17
2) Insert the matched micro SD card until the card slot clicks.
3) Put the cover back on the camera.
3. Install the head cover of PanoVu camera.
1) Loosen the two lock screws and make sure that the screws do not appear in the inner side of
bracket, as shown in Figure 1-25.
2) Route the cables through the head cover and insert the head cover into the bottom of the
bracket.
3) Fix the head cover with the bracket by rotating the head cover clockwise or anticlockwise.
4) Fix two lock screws with the Allen wrench to secure the camera.

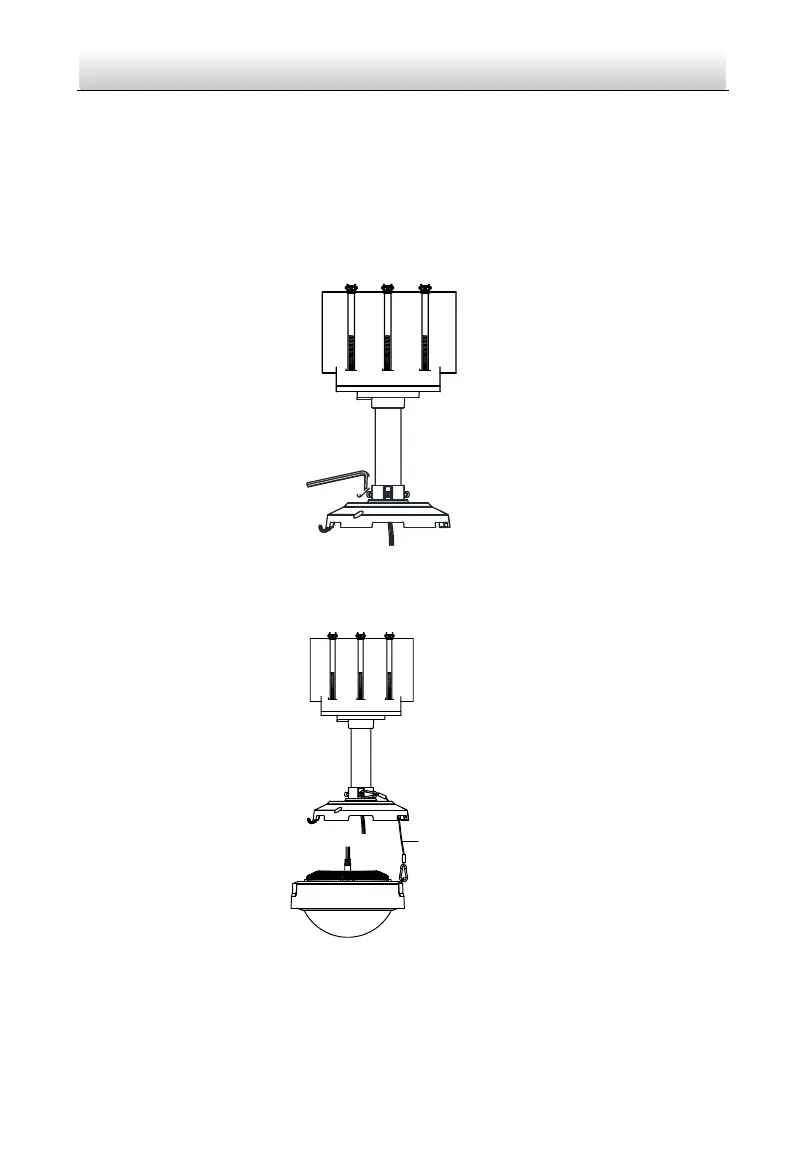

Figure 1-25 Installing Head Cover of PanoVu Camera
4. After fixing the head cover, hook the two ends of the safety rope to the bracket and the
camera respectively, as shown in Figure 1-26.
Safety Rope
Figure 1-26 Install the Safety Rope
5. Connect all cables and insert the rest cables into the bracket.
6. Fix the PanoVu camera with the head cover by fixing screws of the head cover and bracket,
as shown in Figure 1-27.
