7.2 Footboard
Chapter 7: Accessories
DuraStar™ Series Stretcher Service Manual (man268) Page 7 - 5
7
7.2 Footboard
Tools required: None
The footboard mounts in the ISS sockets located at the foot end of the stretcher
(see figure 7-2 on page 7-5). This section describes using the footboard as a
15" (38 cm) foot extender.

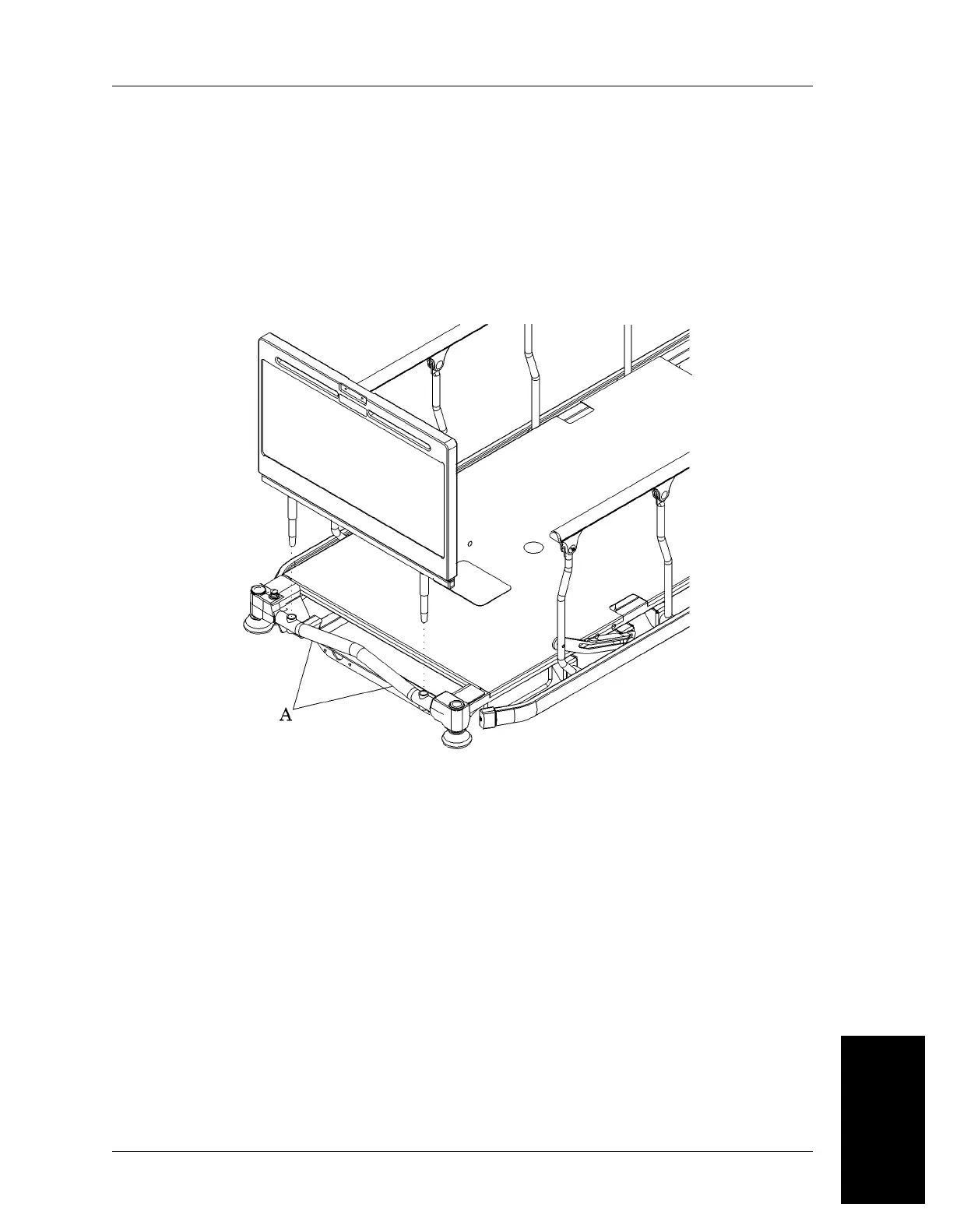

Figure 7-2. Footboard
Installation
1. Remove the footboard assembly from its mounting sockets.
2. Position the footboard horizontally, and slide its mounting posts into the
extender brackets (A) located under the sleep surface.
3. Push the footboard toward the head end until it is fully engaged.
Removal
Perform installation steps in reverse order.
