7.8 Chart Holder
Chapter 7: Accessories
DuraStar™ Series Stretcher Service Manual (man268) Page 7 - 15
7
7.8 Chart Holder
Tools required: None
The chart holder mounts on the footboard or the convertible footboard.
Installation
WARNING:
Before you put the footboard into the transport shelf position, remove
the chart holder from the convertible footboard to avoid injury to the
patient.
1. Slide the bottom wire hooks (C) of the chart holder (D) under the bottom of
the convertible footboard (A) and lift up (see figure 7-8 on page 7-15).

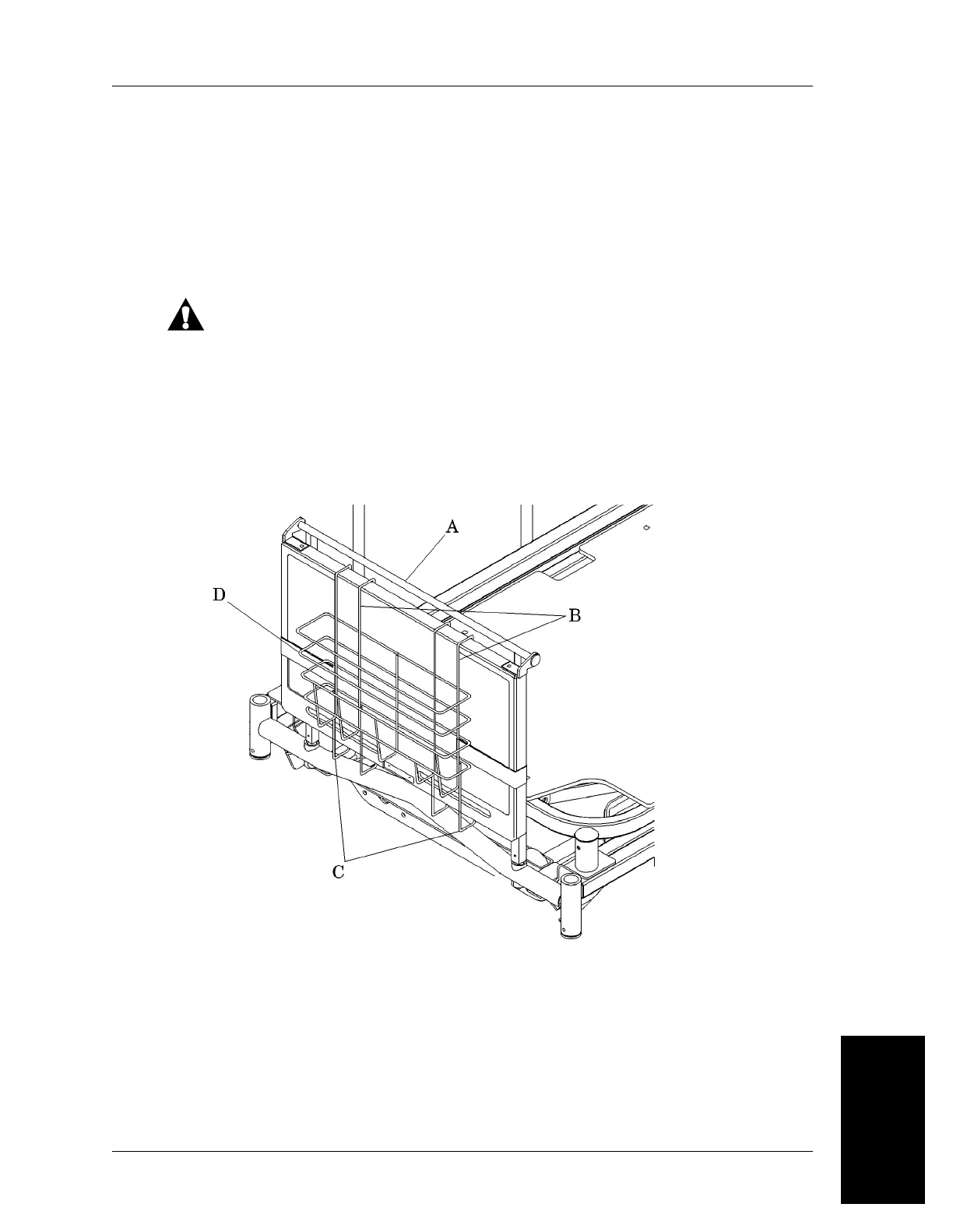

Figure 7-8. Chart Holder
2. Slide the top wire hooks (B) of the chart holder over the top of the
convertible footboard (A).
3. Push down to lock the chart holder into position.
m268_029
