4.9 Caster Brake
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 32 DuraStar Series Stretcher Service Manual (man268)
4.9 Caster Brake
Tools required: 3/16" pin punch 0.070" feeler gauge
Hammer
Adjustment
1. Ensure the brake/steer pedal is in the neutral position.
2. Using the pin punch and hammer, gently spin the brake shoe (A) clockwise
to tighten and counterclockwise to loosen (see figure 4-15 on page 4-32).

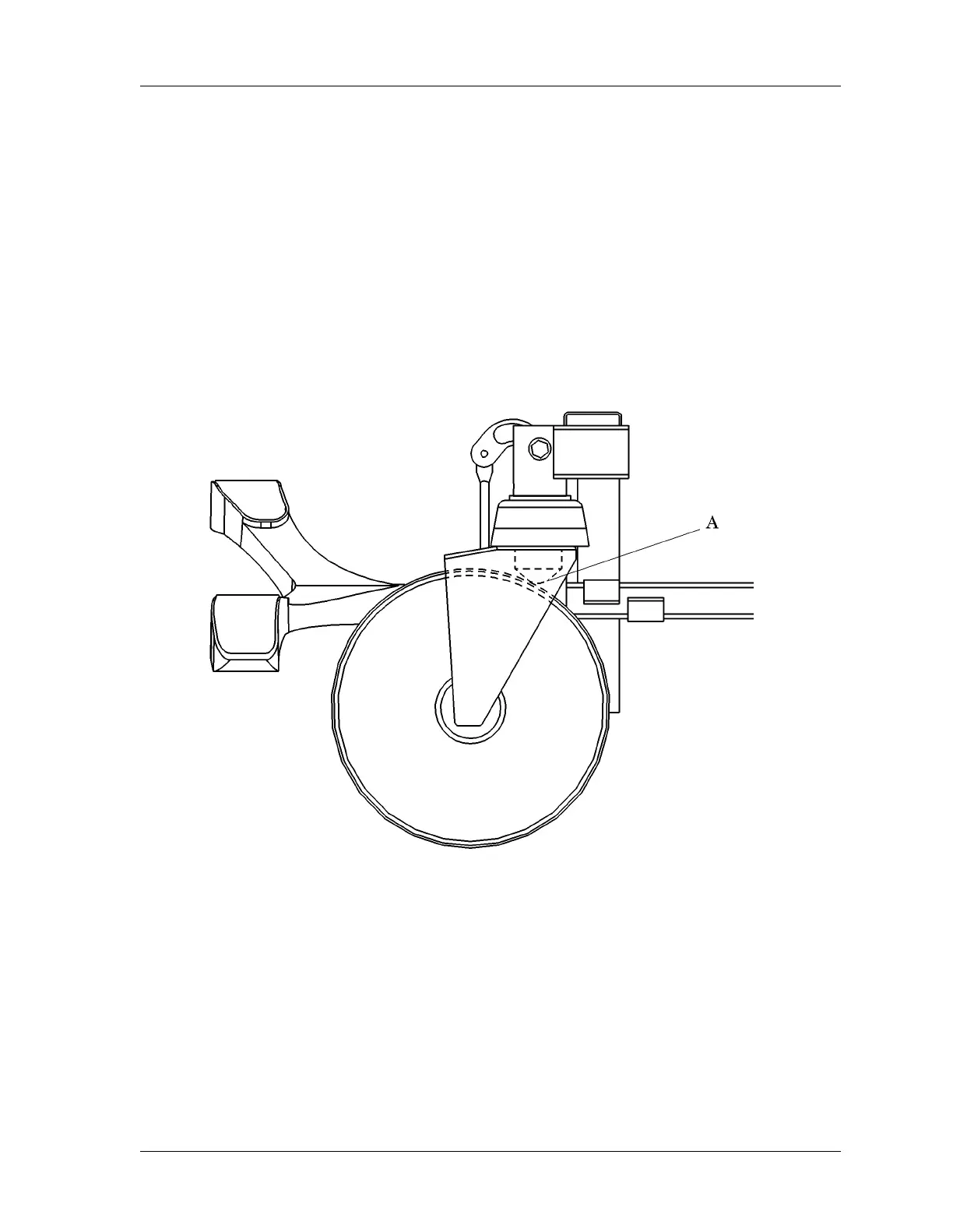

Figure 4-15. Caster Brake Adjustment
3. Using the 0.070" feeler gauge, check the gap between the brake shoe and
the wheel.
m268_043
