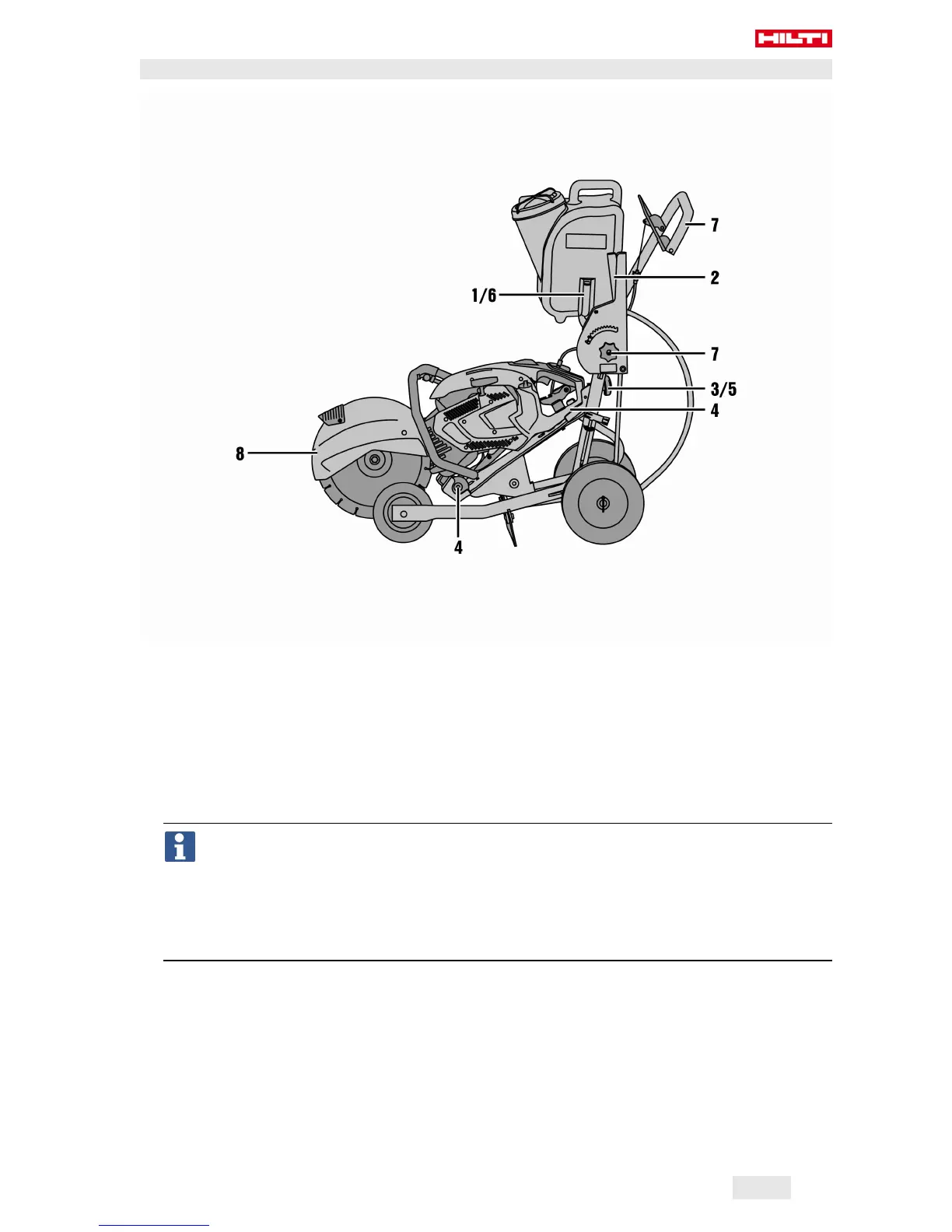

5.4 Mounting the gasoline-powered saw on the saw trolley (accessory)
1. Remove the water tank from the saw trolley.
2. Move the cutting depth adjustment lever into the upper position.
3. Open the hold-down device by releasing the screw knob.
4. Fit the saw into the forward mount with the wheels as shown and swing the grip of the saw under the
hold-down device.
5. Secure the saw by tightening the screw knob.
6. Fit the water tank after filling it.
7. Adjust the grip to a convenient working height.
8. Adjust the guard to the correct position. → page 16
Especially when using the machine in this configuration for the first time, check to ensure that the
throttle cable is correctly adjusted. When the throttle trigger is pressed fully, the product must run
up to maximum speed. If this is not the case, the throttle cable can be readjusted by way of the
cable tensioner.
When the throttle is not actuated, the engine must be idling and the cutting disc must not rotate.
If this is not the case, switch off by pushing the start/stop switch to the “stop” position and then
adjust the throttle cable or have the idling speed adjusted by Hilti Service.
