5.1.2 Inserting the battery
CAUTION
Risk of injury by short circuit or falling battery!
▶ Before inserting the battery, make sure that the contacts on the battery and the contacts on the product
are free of foreign matter.
▶ Make sure that the battery always engages correctly.
1. Charge the battery fully before using it for the first time.
2. Push the battery into the battery holder until it engages with an audible click.
3. Check that the battery is seated securely.
5.1.3 Removing the battery
1. Press the release buttons on the battery.
2. Pull the battery out of its holder in the device.

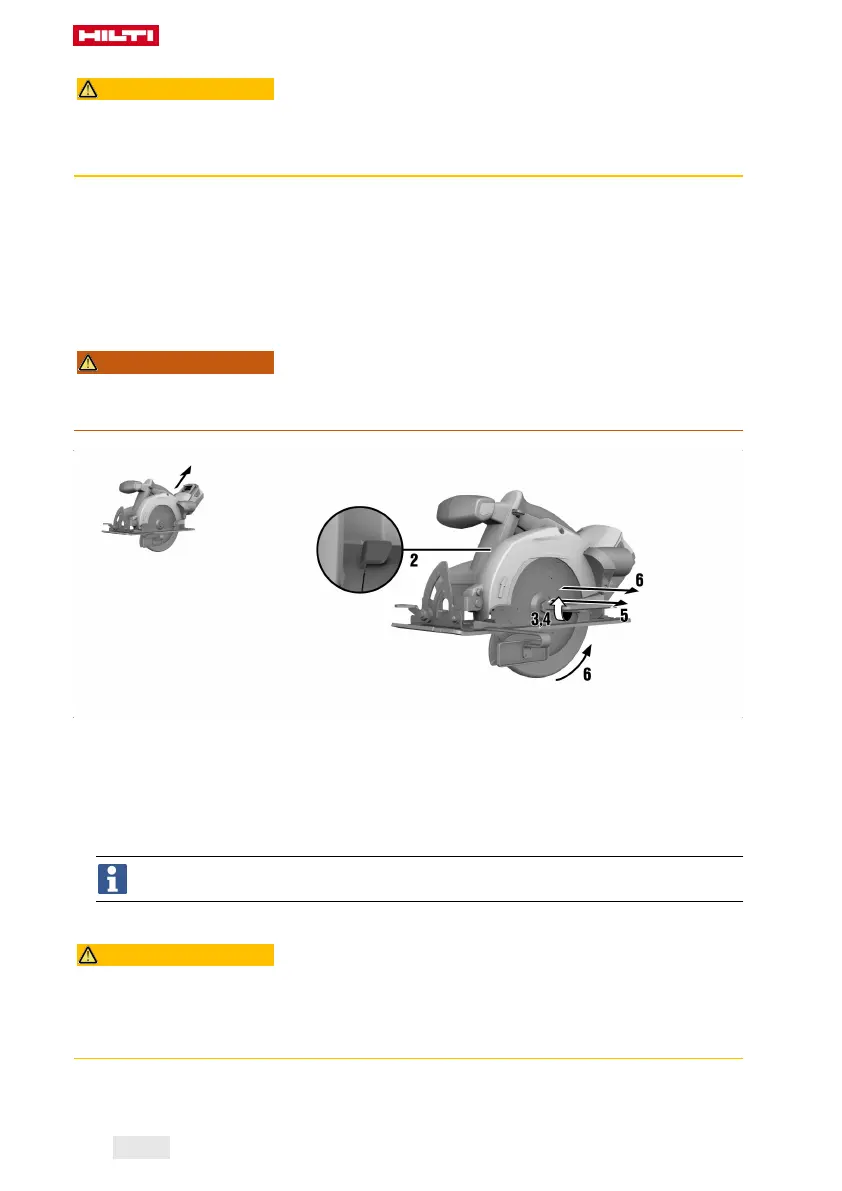

5.1.4 Removing the saw blade
WARNING
Risk of burning injury. A hot accessory tool, clamping flange or clamping screw and the sharp edges of the
saw blade present hazards.
▶ Wear protective gloves when changing saw blades.
1. Pull the battery out of the product to the rear.
2. Insert the hex key into the saw blade clamping screw.
3. Press the spindle lock button and hold it in this position.
4. Turn the saw blade clamping screw with the hex key until the spindle lock button engages fully.
5. Release the clamping screw by turning the hex key in the direction of the direction-of-rotation arrow.
6. Remove the clamping screw from the outer clamping flange.
7. Open the pivoting guard by swinging it to the side and then remove the saw blade.
If necessary, the mounting flange can be removed for cleaning.
5.1.5 Fitting the saw blade
CAUTION
Risk of damage! Unsuitable or incorrectly fitted saw blades may damage the saw.
▶ Only use blades which are suitable for this saw. Observe the direction-of-rotation arrow on the saw
blade.
▶ Use only saw blades equipped with a rated maximum permissible speed that is at least as high as the
maximum speed stated on the product.
