Hilti SCW 22-A Original Operating Instructions

English 13
Check that the blade to be fitted complies with the technical requirements and that it is well
sharpened. A sharp saw blade is an essential requirement for a perfect cut.

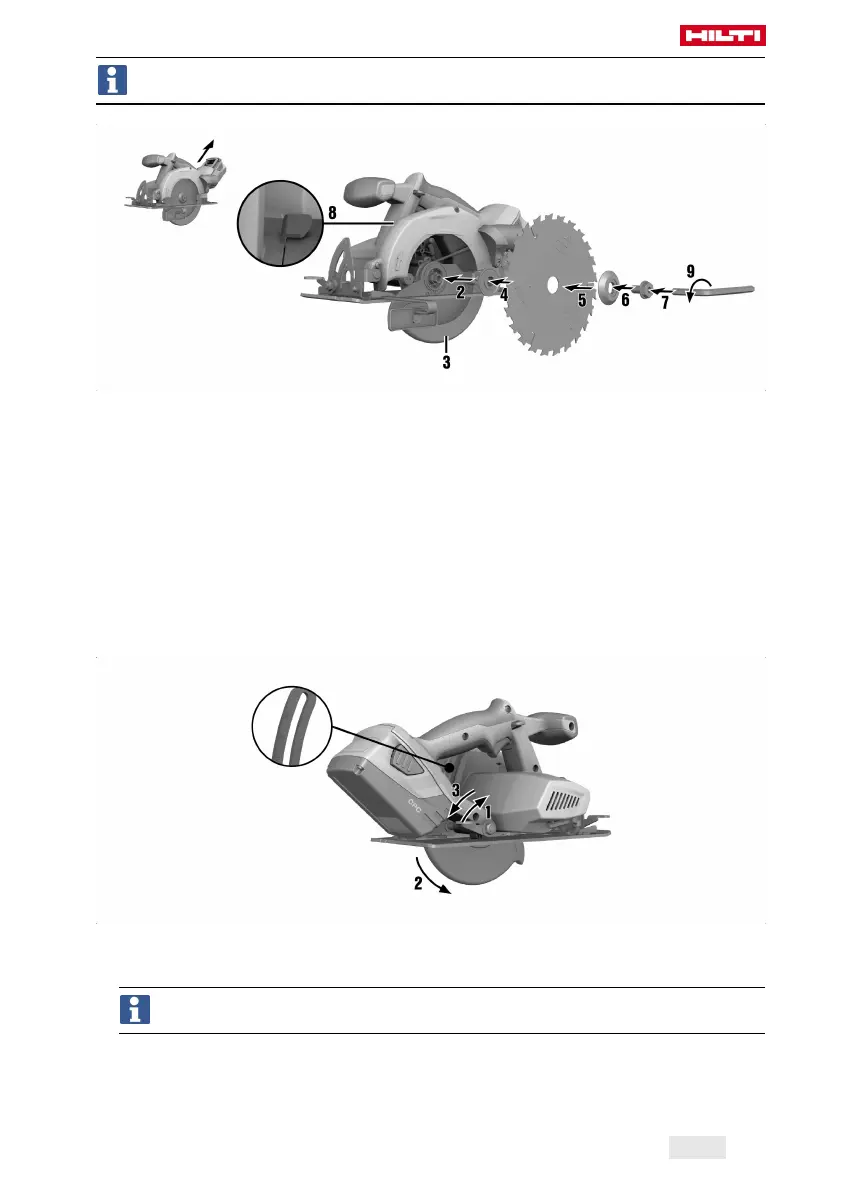

1. Pull the battery out of the product to the rear.
2. Clean the mounting flange and the clamping flange.
3. Fit the mounting flange onto the drive spindle the right way round.
4. Open the pivoting guard.
5. Fit the new saw blade.
6. Fit the outer clamping flange the right way round.
7. Insert the hex key into the saw blade clamping screw.
8. Press the drive spindle lock button.
9. Secure the clamping flange with the clamping screw by turning the hex key in the direction opposite to
the direction-of-rotation arrow.
➥ The spindle lock button engages.
10. Before using the power tool, check that the saw blade is correctly seated and tightened securely.
5.1.6 Adjusting the cutting depth
1. Pull the battery out of the product to the rear.
2. Release the cutting depth adjustment clamping lever.
3. Lift the product in a scissor movement and set the desired cutting depth by closing the clamping lever.
The cutting depth should always be set to a depth approx. 5 to 10 mm greater than the thickness
of the material to be cut.
Printed: 24.05.2019 | Doc-Nr: PUB / 5292954 / 000 / 01

Hilti SCW 22-A Specifications

General

Blade diameter	165 mm
Idle speed (max)	4000 RPM
Cutting depth (45º)	42 mm
Cutting depth (90º)	57 mm
Sound pressure level	93 dB
Vibration level (wood cutting)	1.2 m/s²
Product color	Black, Red
Country of origin	Germany
Dust extraction port	Yes
Power source	Battery
Diamond disc	-
Battery included	No
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Package depth	898 mm
Package width	5400 mm
Package height	2000 mm
Package weight	1345 g
